Redefine your Solar System Protection. Never Before

Solar ACDB DCDBJunction Boxes

We Idis India are manufacturer and exporter of Solar ACDB DCDB Junction boxes from Ahmedabad Gujarat. Since we are manufacturing Enclosures in house, we can supply the junction boxes in time. Available in economic, standard and premium versions. Delivering globally with high customer satisfaction ratio. Our standard range serves Solar acdb dcdb up to 10kw on grid residential rooftop systems. All our products are shipped via our warehouse directly. We dont deal with dealers and distributors to serve end users directly.

IP67 Waterproof

Real IP67 Waterproof Enclosures with EPDM sponge gasket. Get test reports of all our products from NABL Approved laboratory only.

IK08 Impact Resistance

IK08 Impact resistance for ABS and IK09 for fully Polycarbonate Enclosures. Test reports from NABL Approved laboratory. 3mm thick abs or Polycarbonate body withstands heavy loads.

Havells Brand Icon by Idis

Variaty Of Brands

We use components from reliable brands only. We are authorised dealer of Havells. We use Finder made in Italy SPD in our Standard ACDB and DCDB. We have Economic, Standard and Premium 3 different series.

Factory Supply Icon from Idis India

Factory Supply

We dont deal with Dealers and distributors, Most of all our products are shipped from our factory only. This makes it cost effective and ready available stocks. Retail orders are shipped from our online website.

Global Supply

We supply all our products within almost all state of India including, Mizoram, Manipur, J&K etc via transport, courier, india post etc. We Export to different countries via Sea and Air mode in LCL and FCL.

Solar ACDB DCDB Range

The complete range of Solar ACDB DCDB Junction boxes from 1 kw to 10 kw for single phase and three phase on grid and off grid solar systems. Available in havells, finder, elmex and Idis India enclosures. DCDB is available with MCB, Fuse and SPD with 600V dc and 1000V dc ratings. Premium series is with latest polycarbonate IP65 Enclosures with openable lid to access MCB and fuse from outside. Economic range is with Havells mcb and Finder SPD. Standard series is with havells MCB and Havells SPD.

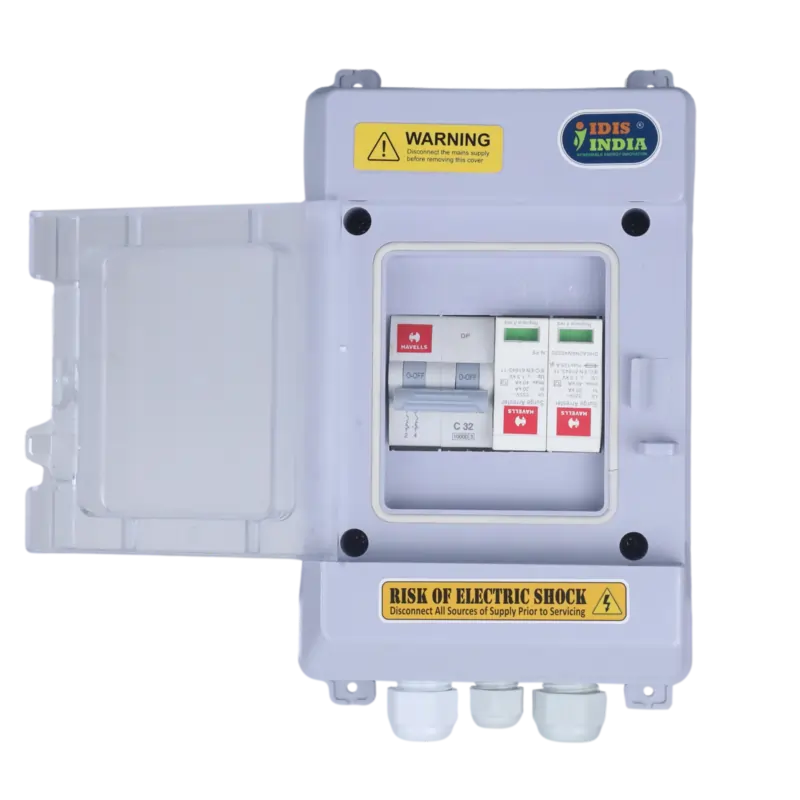

ACDB 1 Phase 1 to 6 KW - Premium

Premium ACDB with havells 32A MCB and Havells SPD Suitable for on grid solar system upto 6 KW Single Phase. Fitted in Premium Enclosure 4 way 130x200x100 mm.

Size 5 x 8 x 4 Inch
Packing : 20 Nos per Carton
Premium Solar Junction Box Havells Single Phase 1 to 6 Kw

SKU 10560

Know More

ACDB 1 Phase 1 to 6 KW - Havells

ACDB with havells 32A MCB and Havells SPD Suitable for on grid solar system upto 6 KW Single Phase. Fitted in Idis Enclosure 140x190x100 mm with additional Mounting Plate.

Size in Inch : 5.5 x 7.5 x 4 Inch
Packing : 20 Nos per Carton
Solar Junction Box 1 Phase 1 to 6 KW - Havells

SKU 10268

Know More

ACDB 1 Phase 1 to 6 KW - Finder

ACDB with havells 32A MCB and Finder SPD Suitable for on grid solar system upto 6 KW Single Phase. Fitted in Idis Enclosure 140x190x100 mm.

Size in Inch : 5.5 x 7.5 x 4 Inch
Packing : 20 Nos per Carton
Solar Junction box 1 Phase 1 to 6 KW - Finder

SKU 10267

Know More

ACDB 3 Phase 1 to 10 KW - Havells

ACDB with havells 32A MCB and Havells SPD Suitable for on grid solar system upto 10 KW Three Phase. Fitted in Idis Enclosure 290x200x130 mm. with RYB Indicator and Mounting Plate.

Size in Inch : 11.5 x 8 x 5 Inch
Packing : 10 Nos per Carton
Solar Junction Box 3 Phase 1 to 10 KW - Havells

SKU 10270

Know More

ACDB 3 Phase 1 to 10 KW - Finder

Economic ACDB with havells 32A MCB and Finder SPD Suitable for on grid solar system upto 10 KW Three Phase. Fitted in Idis Enclosure 210x190x100 mm.

Size in Inch : 8.5 x 7.5 x 4 Inch
Packing : 12 Nos per Carton
Solar Junction Box 3 Phase 1 to 10 KW - Finder

SKU 10271

Know More

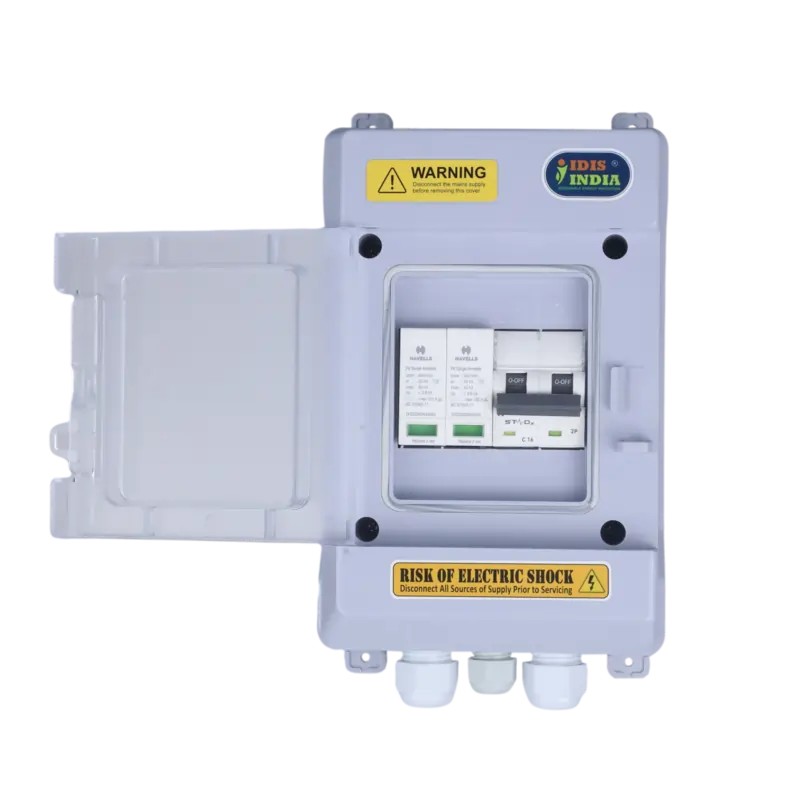

DCDB 1 in 1 out MCB SPD 600V - Premium

Premium DCDB with havells 16A 500V DC MCB and Havells 600V DC SPD. Suitable for on grid solar system upto 500V DC 1 In 1 Out. Fitted in Premium Enclosure 4 way 130x200x100 mm.

Size in Inch : 5 x 8 x 4 Inch
Packing : 20 Nos per Carton
Premium Solar Junction Box havells 1 In 1 Out MCB SPD 600V 1 to 3 Kw

SKU 10561

Know More

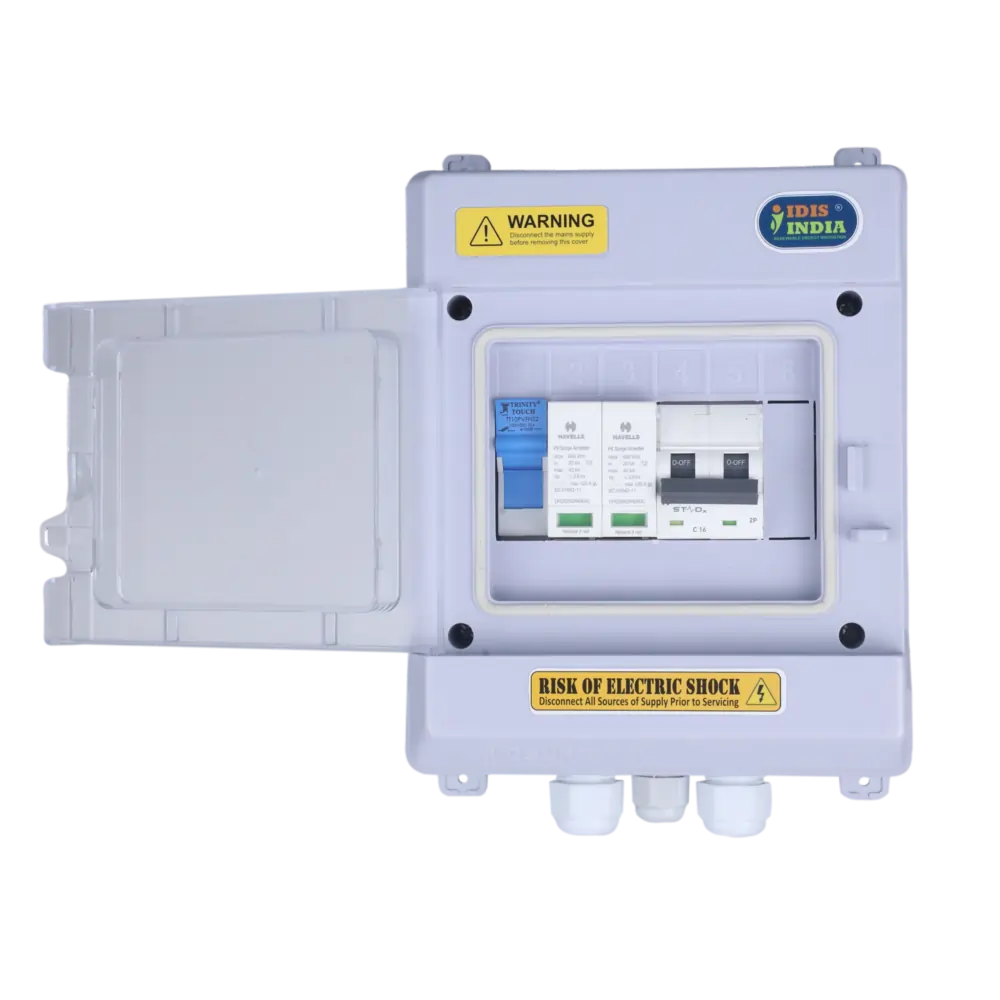

DCDB 1 in 1 out Fuse MCB SPD 500V- Premium

Premium DCDB with havells 16A 500V DC MCB and Havells 600V DC SPD and Trinity 20A 1000V DC Fuse. Suitable for on grid solar system upto 500V DC 1 In 1 Out. Fitted in Premium Enclosure 6 way 170x200x100 mm.

Size in Inch : 6.75 x 4 x 3.5 Inch
Packing : 15 Nos per Carton
Premium Solar Junction Box havells 1 In 1 Out Fuse MCB SPD 600V 1 to 3 Kw

SKU 10562

Know More

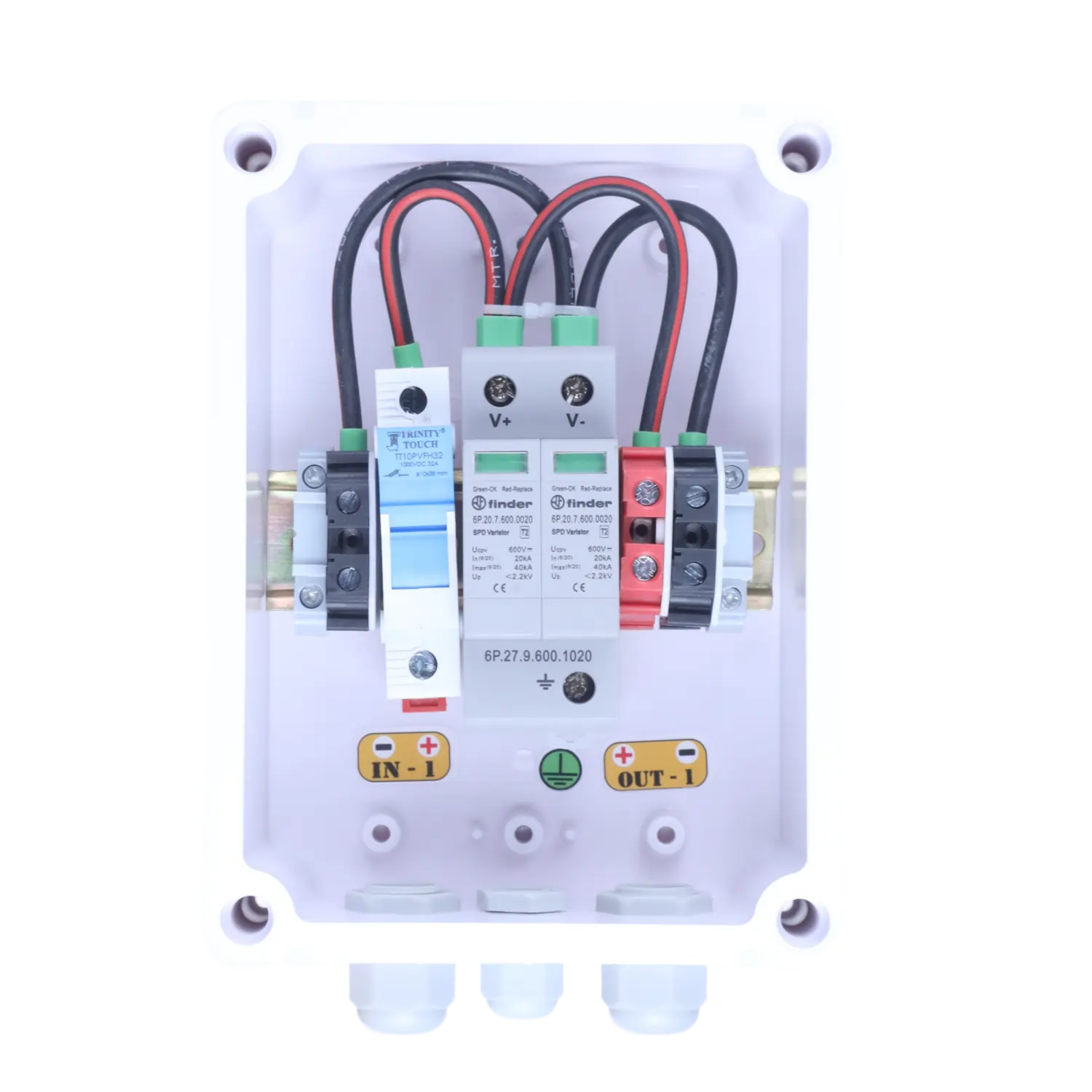

DCDB 1 in 1 out Fuse SPD 600V - Finder

DCDB with Trinity 20A Fuse 1000v and Finder 600V DC SPD. Suitable for on grid solar system upto 600V 1 In 1 Out. Fitted in Idis Enclosure 140 x 190 x 100 mm.

Size in Inch : 5.5 x 7.5 x 4 Inch
Packing : 20 Nos per Carton
Solar Junction Box Finder 1 In 1 Out Fuse SPD 600V by Idis India

SKU 10300

Know More

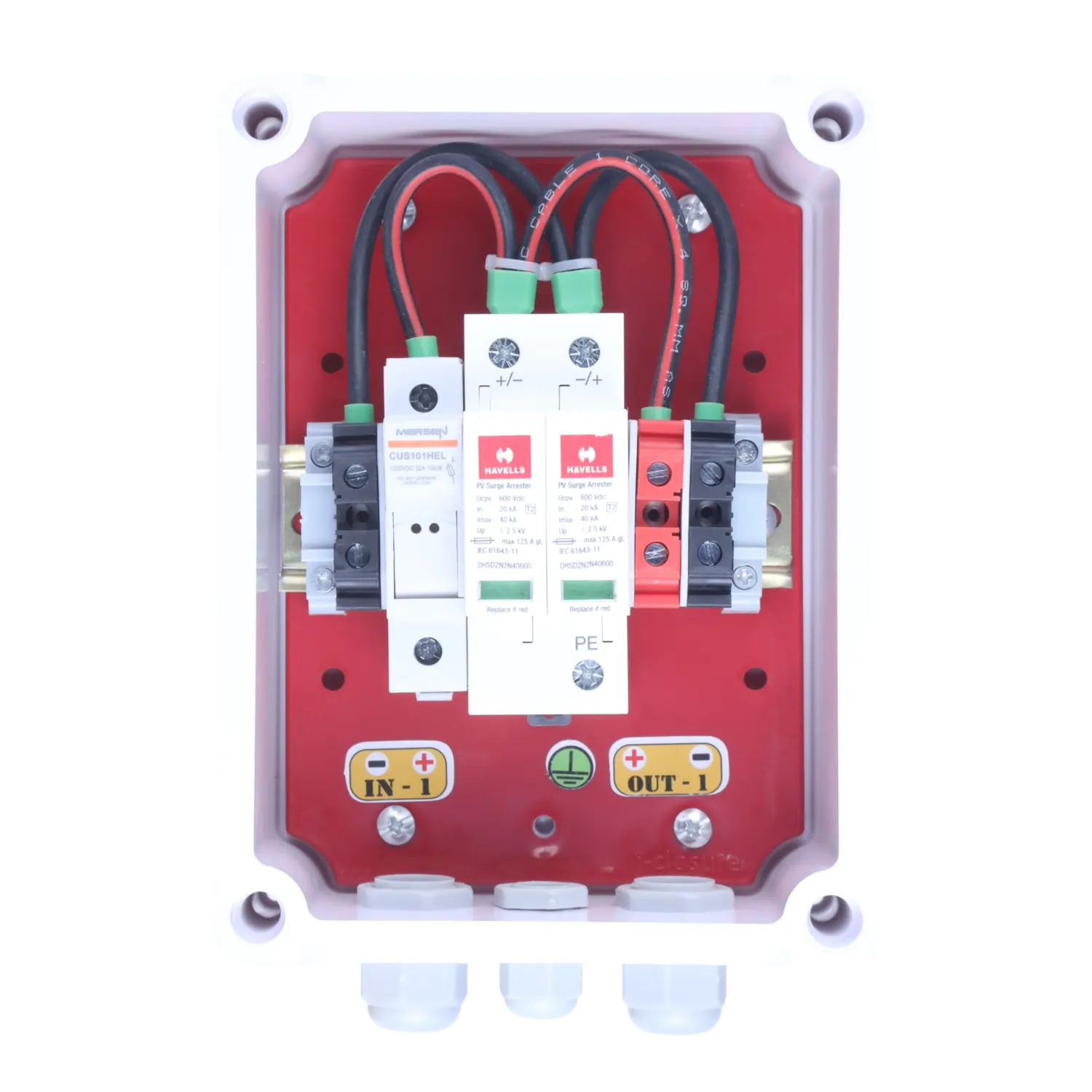

DCDB 1 in 1 out Fuse SPD 600V- Havells

DCDB with Trinity 20A Fuse 1000v and Havells 600V DC SPD. Suitable for on grid solar system upto 600V 1 In 1 Out. Fitted in Idis Enclosure 140 x 190 x 100 mm with Mounting Plate

Size in Inch : 5.5 x 7.5 x 4 Inch
Packing : 20 Nos per Carton
Solar Junction Box Havells 1 In 1 Out Fuse SPD 600V by Idis India

SKU 10299

Know More

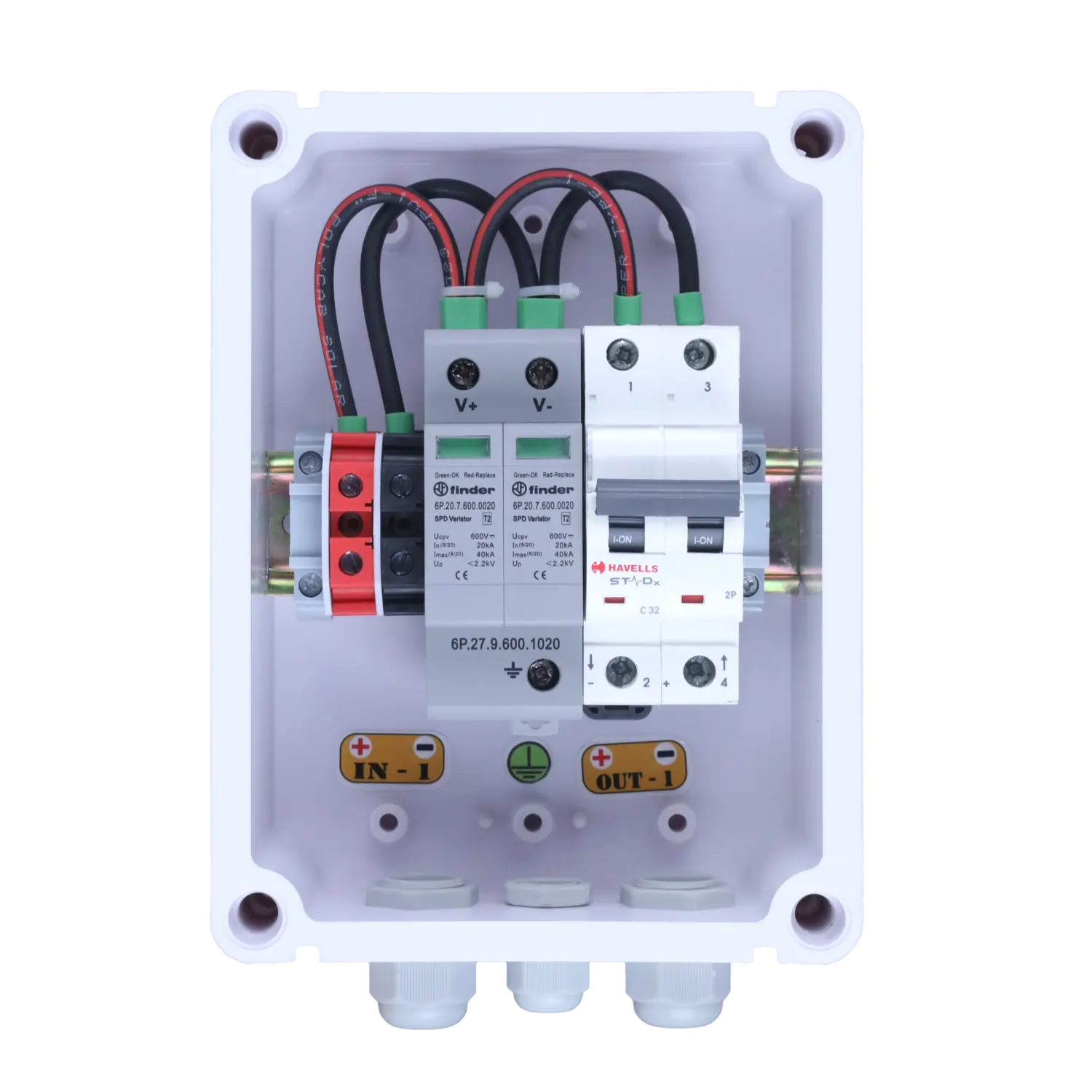

DCDB 1 in 1 out MCB SPD 500V- Finder

DCDB with Havells DC MCB 16A 500v and Finder 600V DC SPD. Suitable for on grid solar system upto 500V 1 In 1 Out. Idis Enclosure 140 x 190 x 100 mm.

Size in Inch : 5.5 x 7.5 x 4 Inch
Packing : 20 Nos per Carton
Solar Junction box Finder 1 In 1 Out MCB SPD 500V by Idis India

SKU 10298

Know More

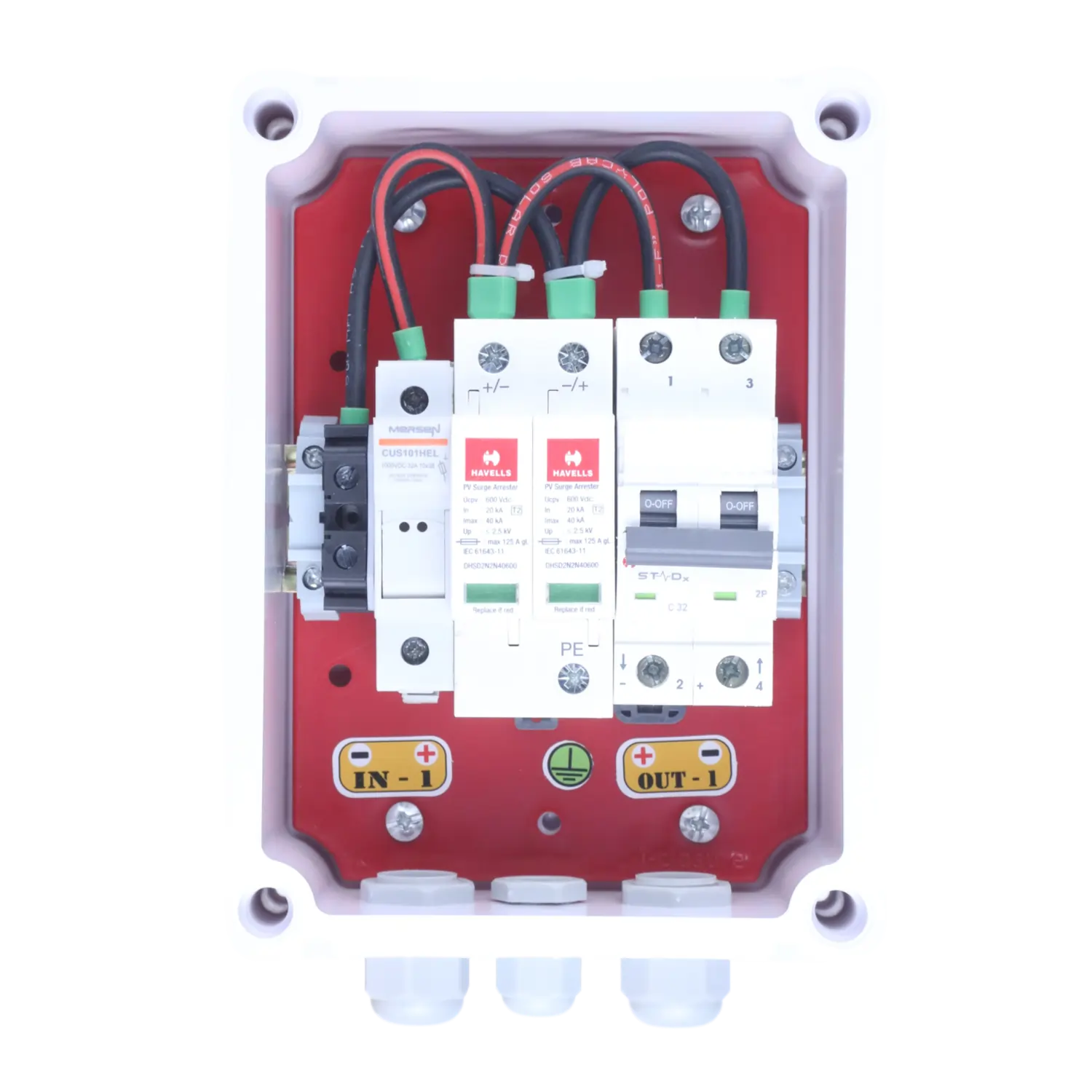

DCDB 1 in 1 out Fuse MCB SPD 500V- Havells

DCDB with havells 16A 500V DC MCB and Havells 600V DC SPD and Trinity 20A 1000V DC Fuse. Suitable for on grid solar system upto 500V DC 1 In 1 Out. Fitted in 140 x 190 x 100mm Enclosure with mounting Plate.

Size in Inch : 5.5 x 7.5 x 4 Inch
Packing : 20 Nos per Carton
Solar Junction Box Havells 1 In 1 Out Fuse MCB SPD 500V by Idis India

SKU 10296

Know More

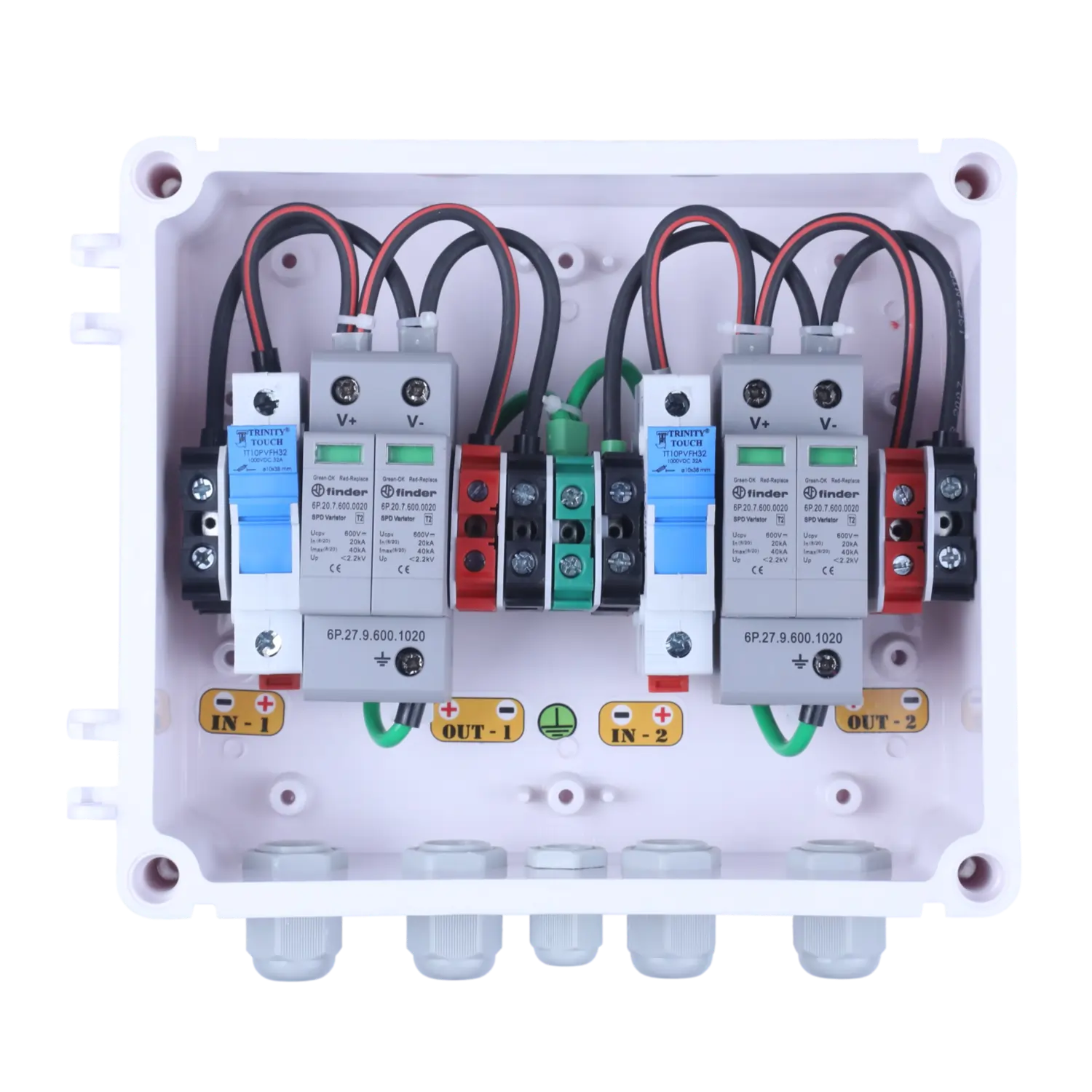

DCDB 2 in 2 out Fuse SPD 600V- Finder

DCDB with Trinity 20A Fuse 1000v and Finder 600V DC SPD. Suitable for on grid solar system upto 600V 2 In 2 Out. Fitted in Idis Enclosure 210 x 190 x 100 mm.

Size in Inch : 8.5 x 7.5 x 4 Inch
Packing : 12 Nos per Carton
Solar Junction Box Finder 2 In 2 Out Fuse SPD 600V by Idis India

SKU 10310

Know More

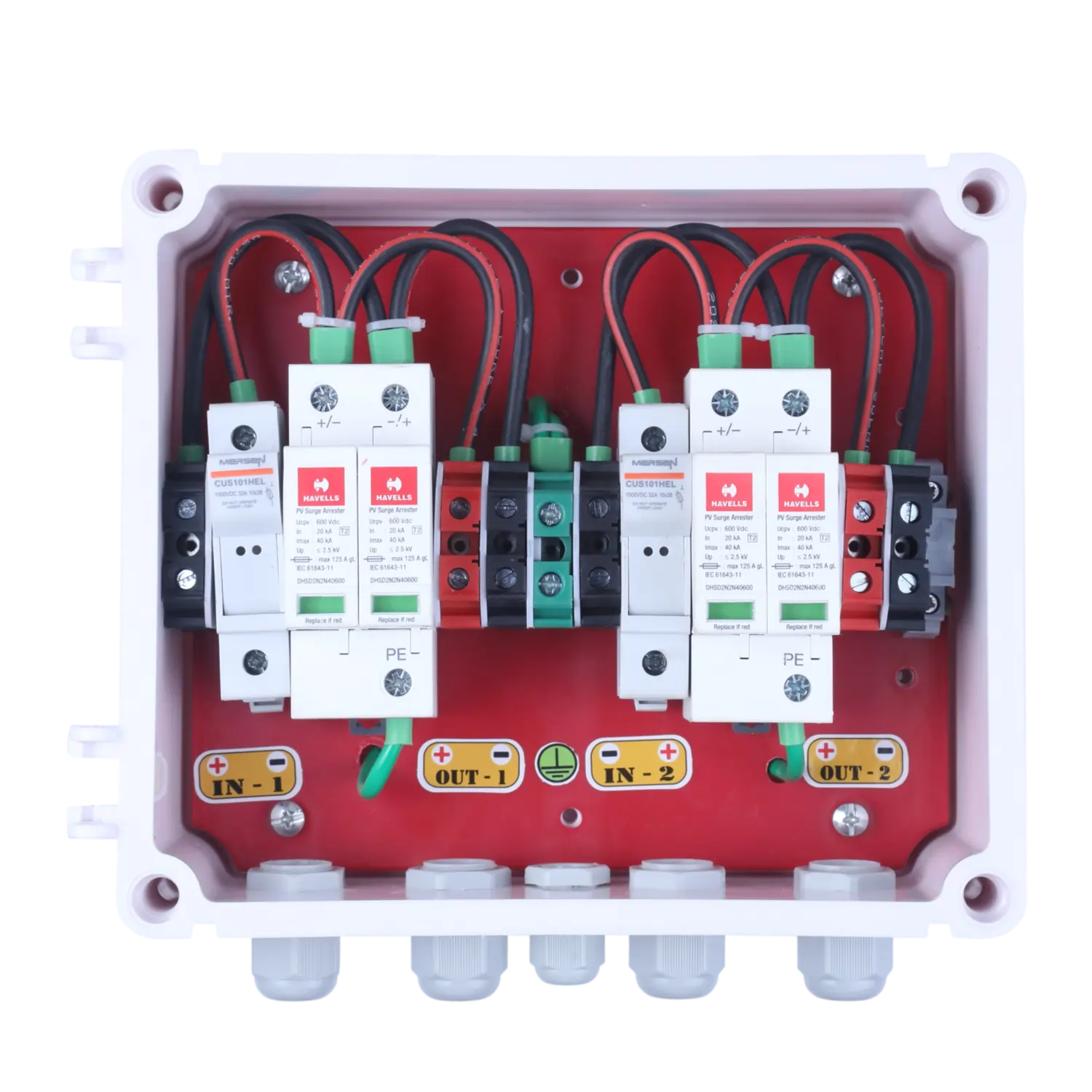

DCDB 2 in 2 out Fuse SPD 600V- Havells

DCDB with Trinity 20A Fuse 1000v and Havells 600V DC SPD. Suitable for on grid solar system upto 600V 2 In 2 Out. Fitted in Idis Enclosure 210 x 190 x 100 mm with Mounting Plate

Size in Inch : 8.5 x 7.5 x 4 Inch
Packing : 12 Nos per Carton
Solar Junction box Havells 2 In 2 Out Fuse SPD 600V by Idis India

SKU 10309

Know More

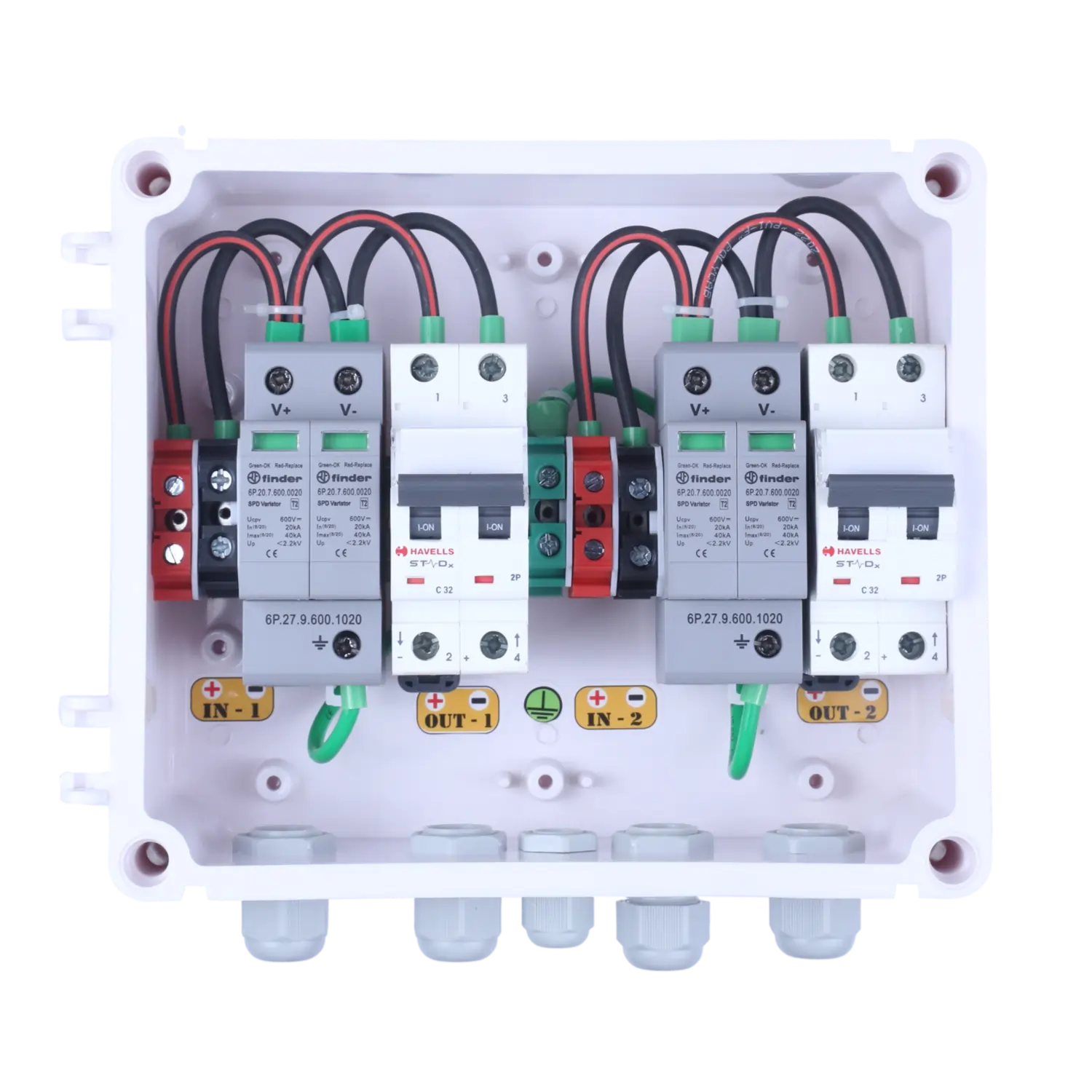

DCDB 2 in 2 out MCB SPD 500V- Finder

DCDB with Havells DC MCB 16A 500v and Finder 600V DC SPD. Suitable for on grid solar system upto 500V 2 In 2 Out. Idis Enclosure 210 x 190 x 100 mm.

Size in Inch : 8.5 x 7.5 x 4 Inch
Packing : 12 Nos per Carton
Solar Junction Box Finder 2 In 2 Out MCB SPD 500V by Idis India

SKU 10308

Know More

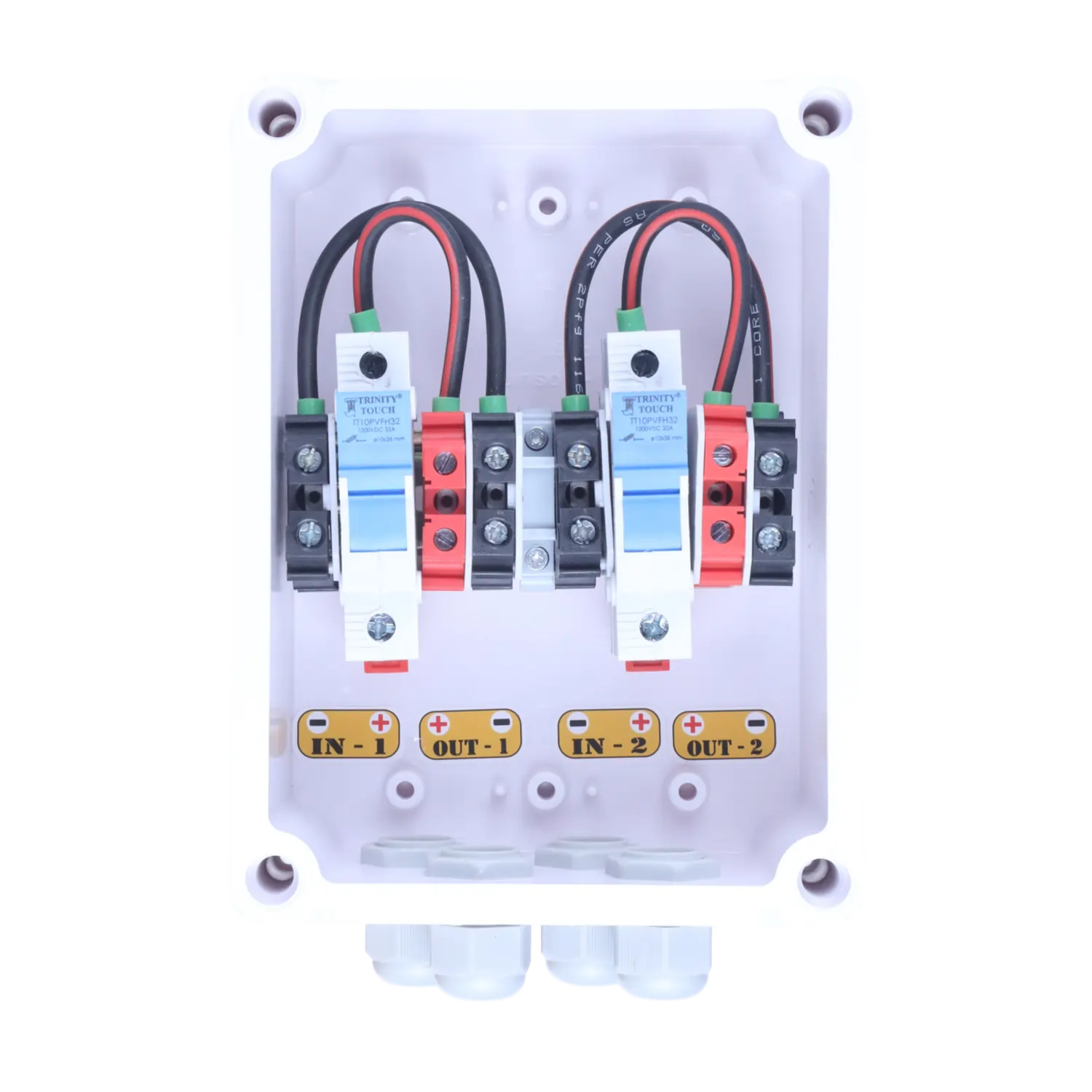

DCDB 2 in 2 out Fuse Only 1000V - Standard

DCDB with Trinity 20A DC 1000v Fuse. Suitable for on grid solar system upto 1000V 2 In 2 Out. Fitted in Idis Enclosure 140 x 190 x 100 mm.

Size in Inch : 5.5 x 7.5 x 4 Inch
Packing : 20 Nos per Carton
Solar Junction ox Finder 2 In 2 Out Fuse 1000V by Idis India

SKU 10304

Know More

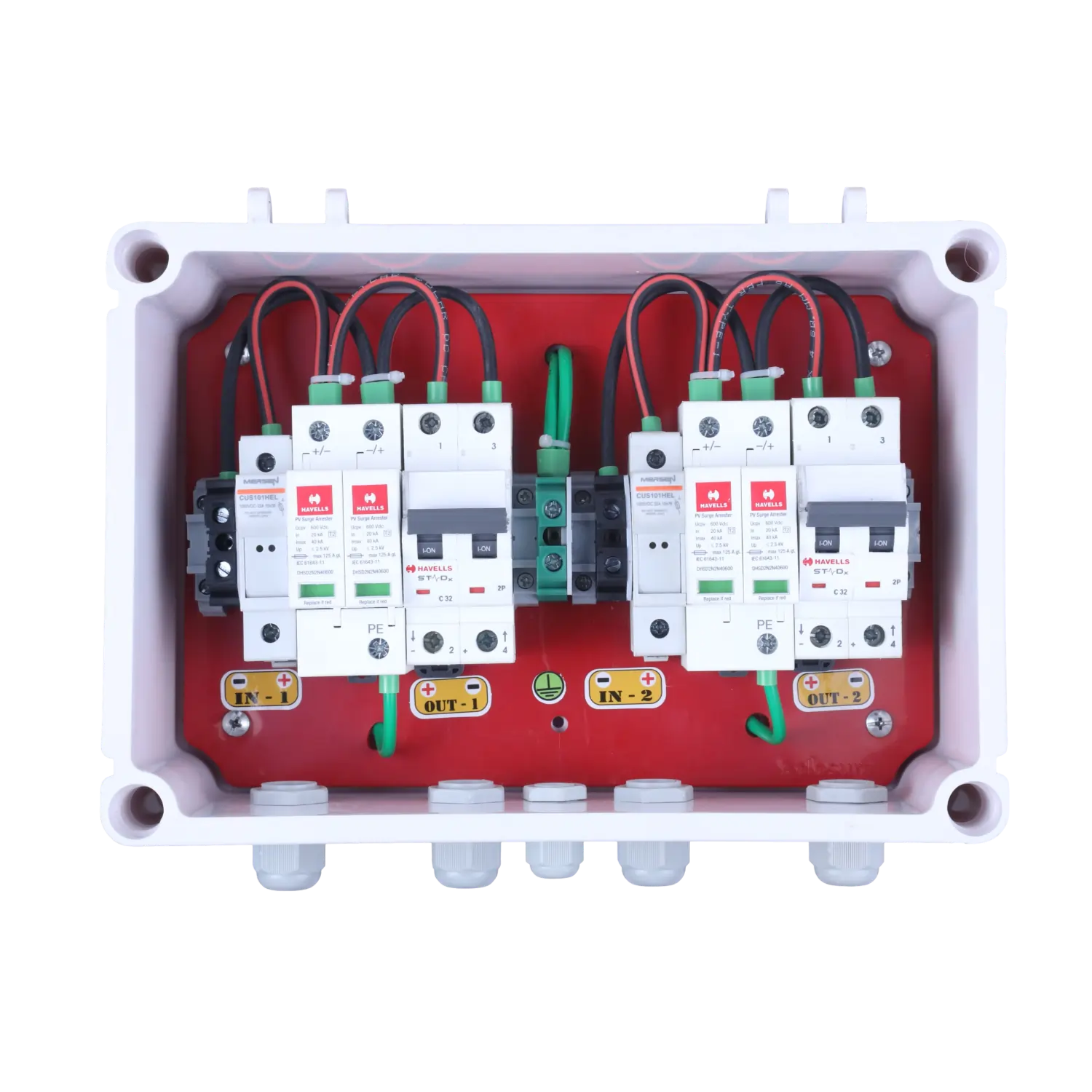

DCDB 2 in 2 out Fuse MCB SPD 500V - Havells

DCDB with havells 16A DC 500V MCB and Havells 600V DC SPD and Trinity 20A 1000V DC Fuse. Suitable for on grid solar system upto 500v 2 In 2 Out. Fitted in 290 x 200 x 130mm Enclosure with mounting Plate.

Size in Inch : 11.5 x 8 x 5 Inch
Packing : 10 Nos per Carton
Solar Junction Box Havells 2 In 2 Out Fuse MCB SPD 500V by Idis India

SKU 10306

Know More

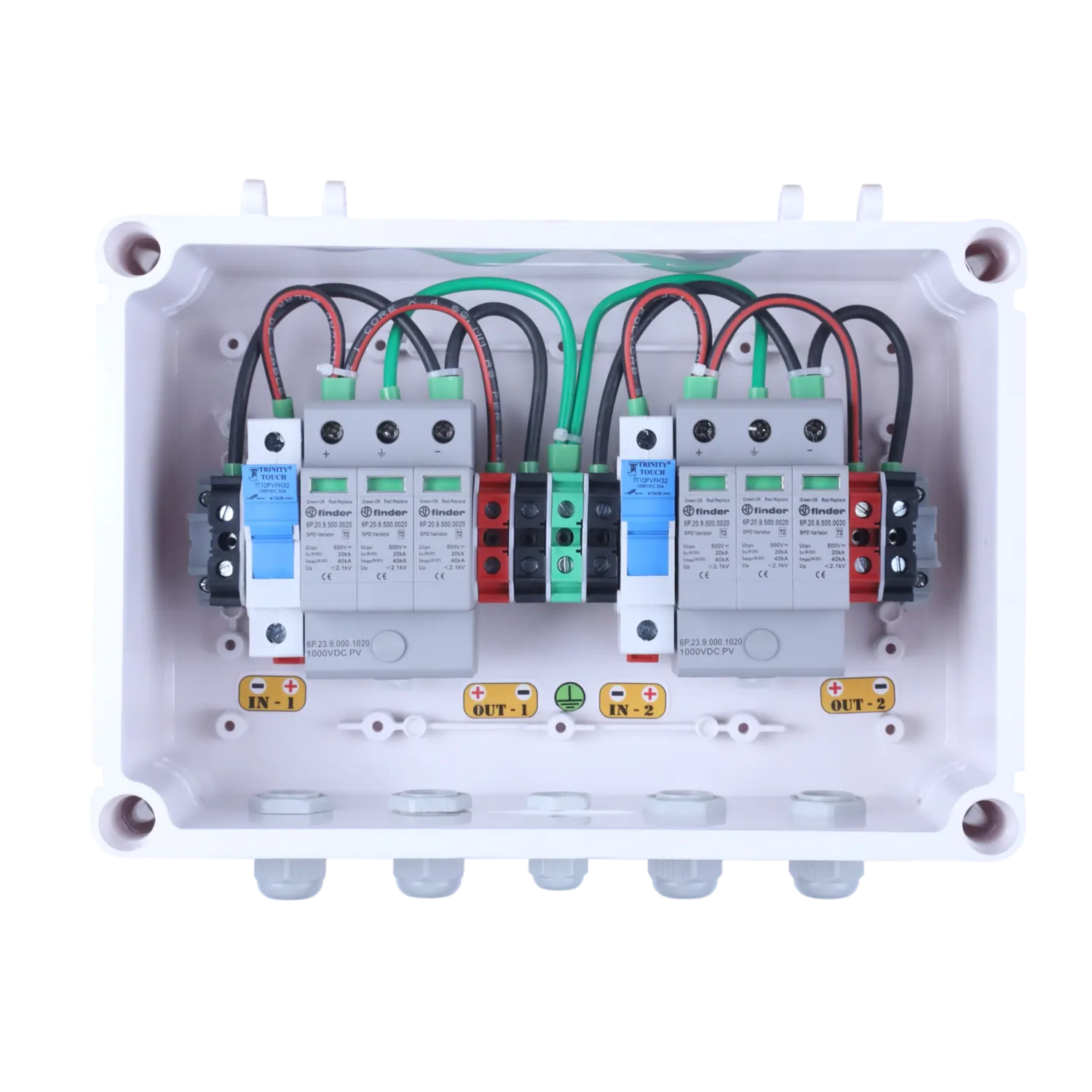

DCDB 2 in 2 out Fuse SPD 1000V - Standard

DCDB with Trinity 20A Fuse 1000v and Finder 1000V DC SPD. Suitable for on grid solar system upto 1000V 2 In 2 Out. Fitted in Idis Enclosure 290 x 200 x 130 mm.

Size in Inch : 11.5 x 8 x 5 Inch
Packing : 10 Nos per Carton
Solar Junction Box Finder 2 In 2 Out Fuse SPD 1000V by Idis India

SKU 10305

Know More

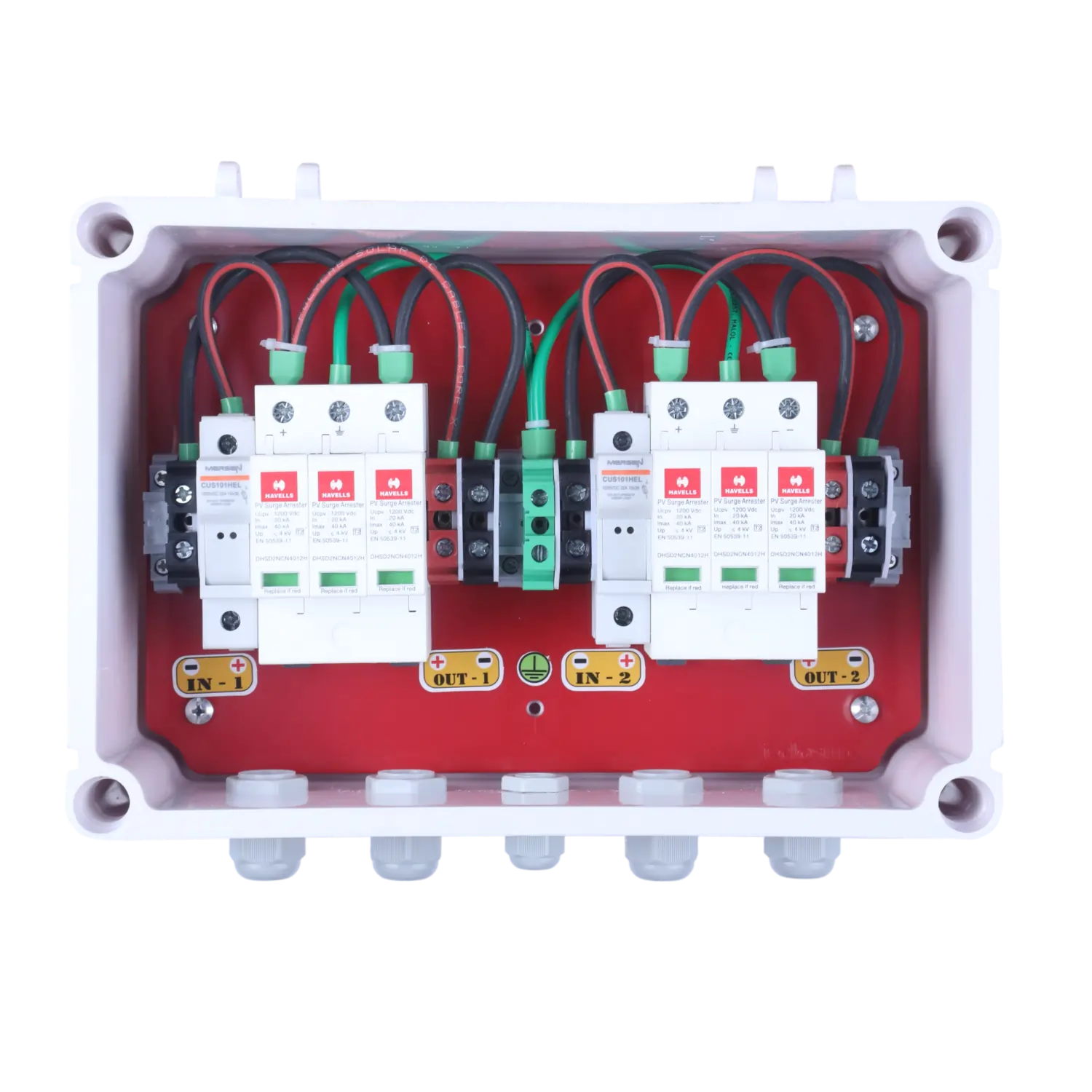

DCDB 2 in 2 out Fuse SPD 1000V - Havells

DCDB with Trinity 20A Fuse 1000v and Havells 1000V DC SPD. Suitable for on grid solar system upto 1000V 2 In 2 Out. Fitted in Idis Enclosure 290 x 200 x 130 mm with Mounting Plate

Size in Inch : 11.5 x 8 x 5 Inch
Packing : 10 Nos per Carton
Solar Junction Box Havells 2 In 2 Out Fuse SPD 1000V by Idis India

SKU 10301

Know More

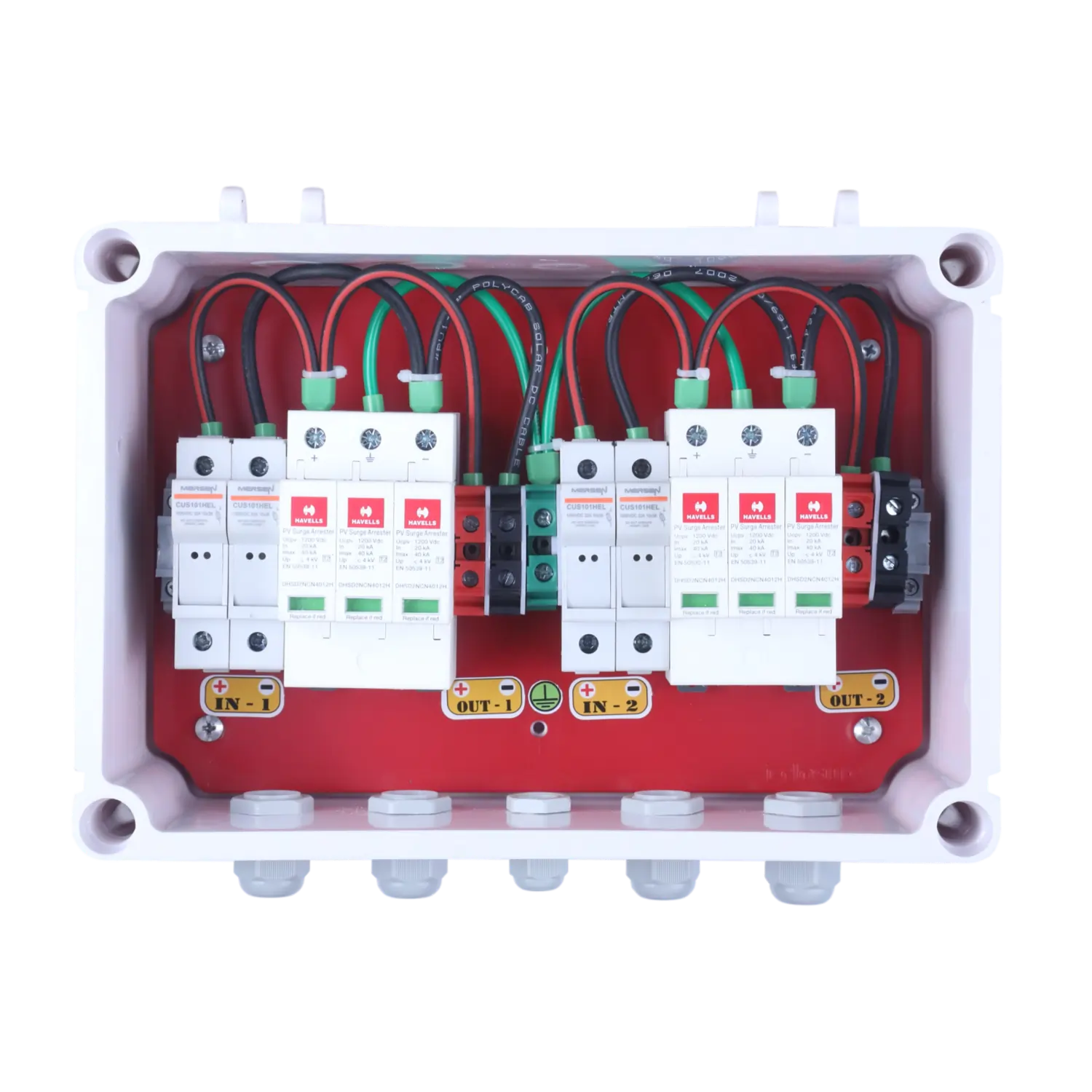

DCDB 2 in 2 out Double Fuse SPD 1000V - Havells

DCDB with Double Trinity 20A Fuse 1000v and Havells 1000V DC SPD. Suitable for on grid solar system upto 1000V 2 In 2 Out. Fitted in
Idis Enclosure 290 x 200 x 130 mm with Mounting Plate

Size in Inch : 11.5 x 8 x 5 Inch
Packing : 10 Nos per Carton
Solar Junction Havells 2 In 2 Out Double Fuse SPD 1000V by Idis India

SKU 10302

Know More

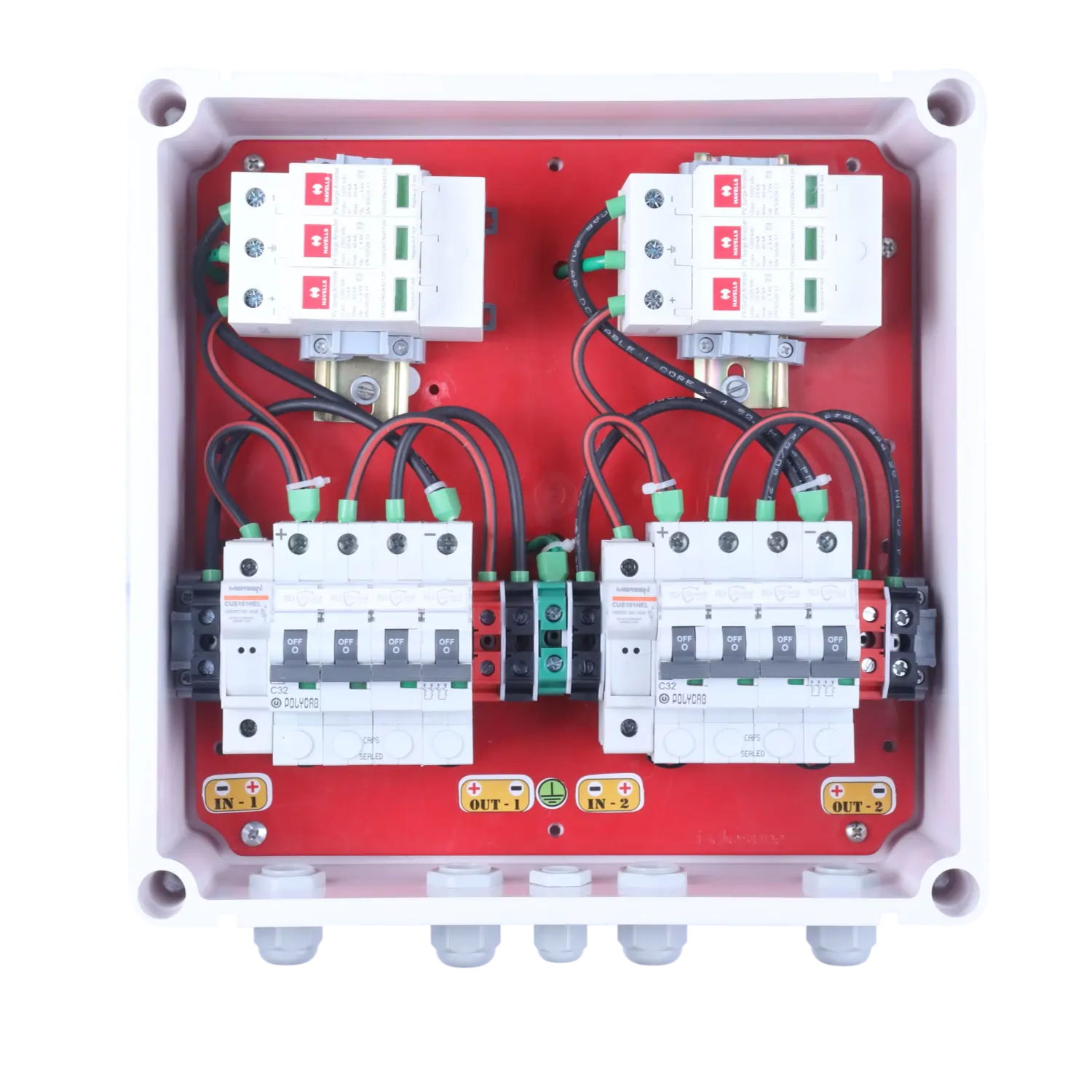

DCDB 2 in 2 out Fuse MCB SPD 1000V - Havells

DCDB with Polycab 16A DC 1000V MCB and Havells 1000V DC SPD and Trinity 20A 1000V DC Fuse. Suitable for on grid solar system upto 1000v 2 In 2 Out. Fitted in 280 x 280 x 110mm Enclosure with mounting Plate.

Size in Inch : 12 x 12 x 4.25 Inch
Packing : 6 Nos per Carton
Solar Junction box Havells 2 In 2 Out Fuse MCB SPD 1000V by Idis India

SKU 10303

Know More
