IDIS India proudly introduces its latest innovation in custom plastic enclosure manufacturing – a sophisticated display enclosure featuring dual window configuration and advanced ultrasonic welding technology. This groundbreaking development showcases our commitment to delivering precision-engineered solutions that meet the most demanding industrial requirements. Our I-closure brand continues to push the boundaries of plastic enclosure design, combining aesthetic appeal with robust functionality.
The new custom display enclosure represents months of dedicated research and development at our Ahmedabad facility. Our engineering team has meticulously crafted this solution to address the growing demand for high-quality electronic display housings in various industries. The enclosure features a clean, professional appearance with integrated mounting provisions and weather-resistant design characteristics that make it suitable for both indoor and outdoor applications.
This innovative product demonstrates IDIS India’s capability to handle complex custom development projects from initial concept through final production. Our comprehensive approach includes detailed design analysis, prototype development, tooling creation, and full-scale manufacturing support. The integration of ultrasonic welding technology ensures superior joint strength and aesthetic finish while maintaining cost-effectiveness for medium to high-volume production runs.

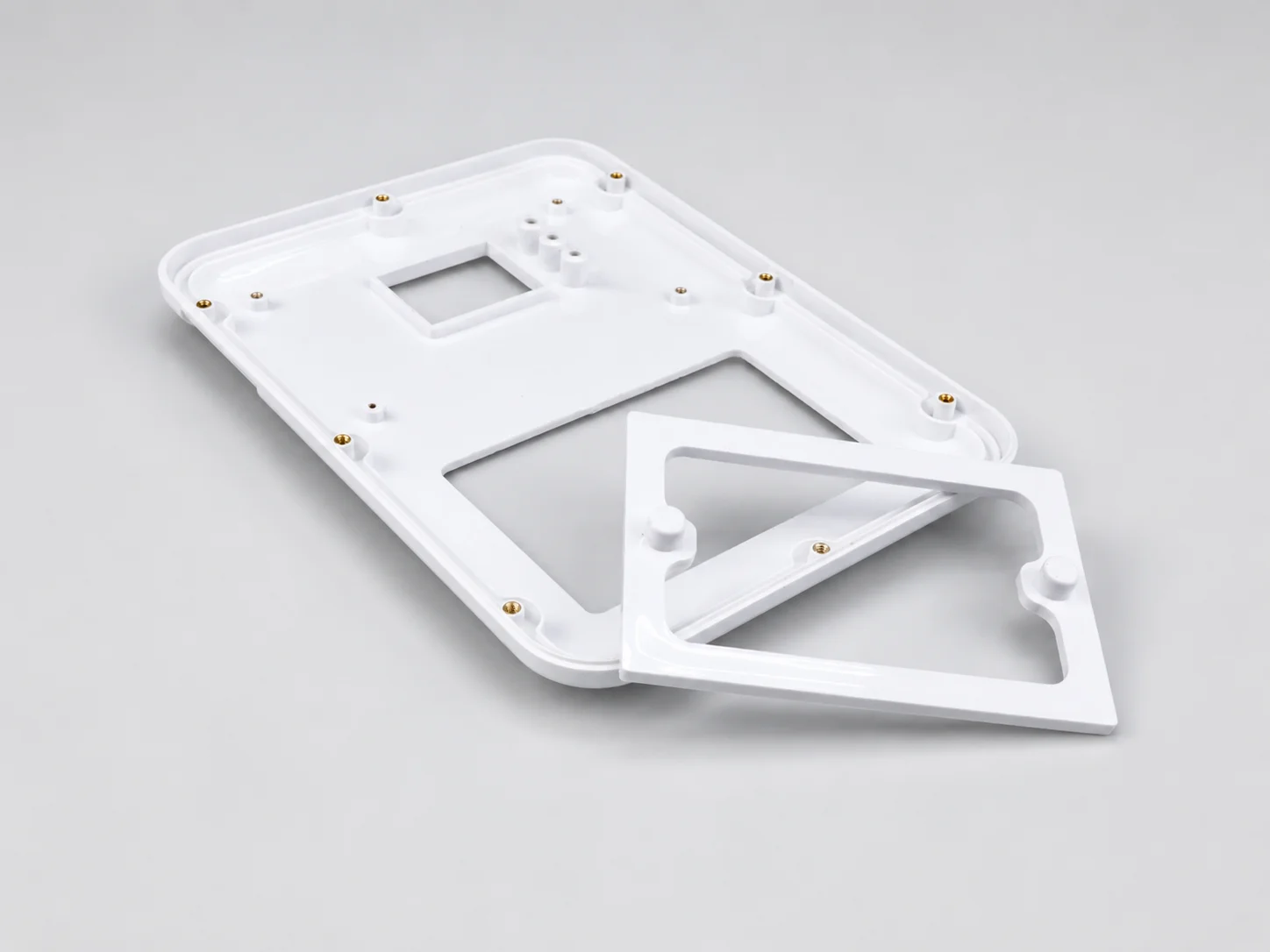

Custom Enclosure Design with Dual Window Configuration
The custom display enclosure features an innovative dual window configuration that maximizes display visibility while maintaining structural integrity. The primary window provides ample space for main display elements, while the secondary smaller window accommodates additional indicators or control interfaces. This thoughtful design approach allows manufacturers to create more intuitive user interfaces without compromising the enclosure’s protective capabilities.
Our design team at IDIS India carefully considered the optical requirements for each window opening. The smooth, rounded edges prevent stress concentration while providing a professional finished appearance. The window openings are precisely dimensioned to accommodate standard display modules with appropriate clearances for thermal expansion and manufacturing tolerances. Special attention was given to maintaining wall thickness consistency around the openings to ensure uniform material flow during the injection molding process.
The I-closure design philosophy emphasizes both form and function in every project. This enclosure showcases clean lines and contemporary styling that complement modern electronic devices. The dual window arrangement creates visual balance while providing practical benefits for device operation and maintenance. The overall dimensions and proportions were optimized through extensive design iterations to achieve the perfect balance between compactness and functionality.

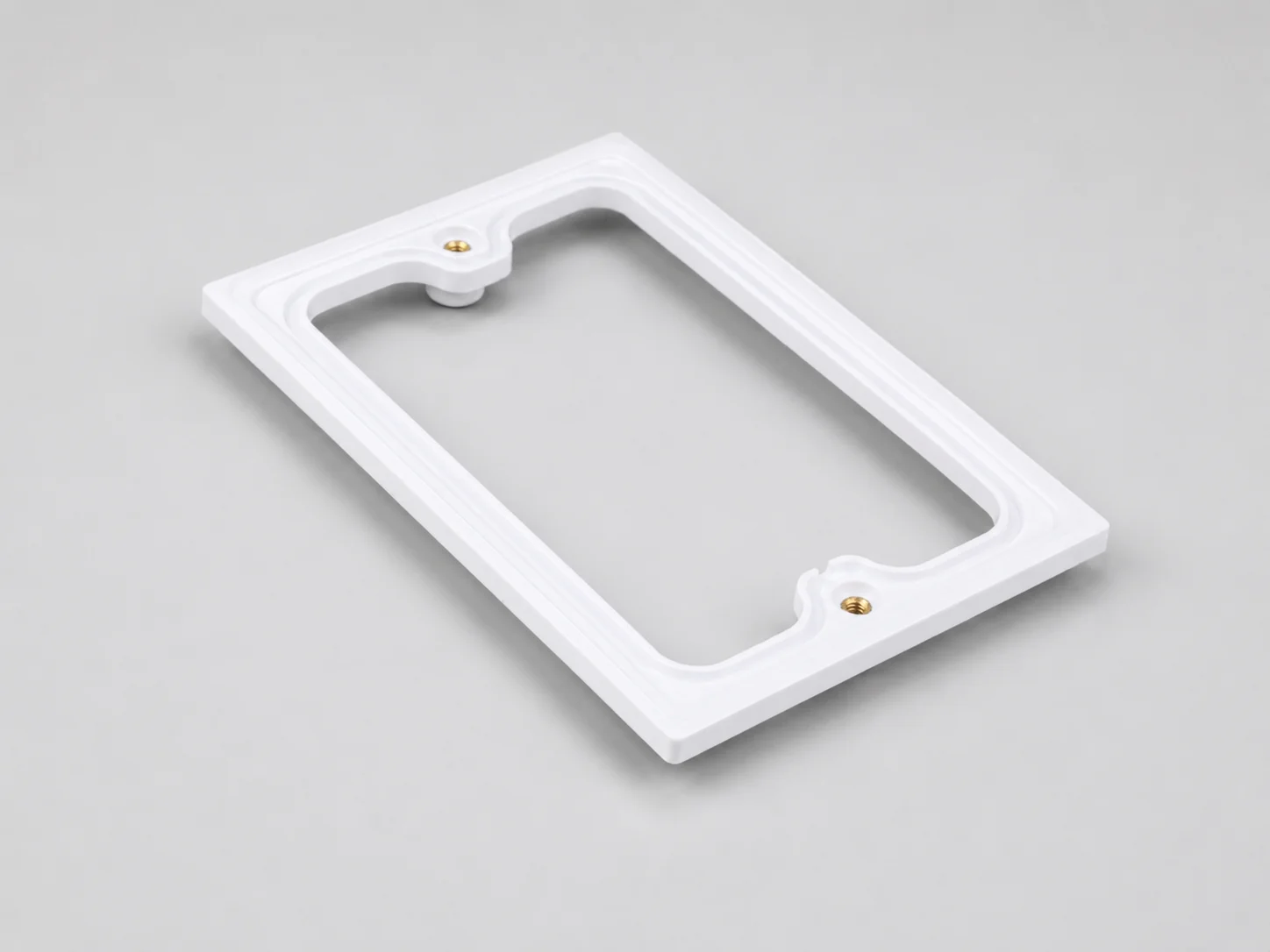

Threaded Insert Integration for Secure Assembly
One of the standout features of this custom enclosure is the strategic integration of brass threaded inserts throughout the design. These precision-manufactured inserts provide superior holding strength compared to self-tapping screws while allowing for repeated assembly and disassembly without thread degradation. The insert locations were carefully planned during the design phase to ensure optimal load distribution and accessibility for assembly operations.
IDIS India’s expertise in insert molding ensures perfect alignment and secure retention of each threaded insert. Our advanced molding techniques prevent insert rotation and pull-out while maintaining precise thread concentricity. The brass inserts are specifically selected for their corrosion resistance and electrical conductivity properties, making them ideal for electronic applications where grounding continuity may be required.
The insert installation process utilizes specialized ultrasonic insertion equipment that creates a secure mechanical bond between the insert and the surrounding plastic material. This method eliminates the need for adhesives or mechanical retention features while providing consistent installation quality. Our quality control procedures verify insert torque strength and positional accuracy for every manufactured unit, ensuring reliable field performance throughout the product’s service life.
Ultrasonic Welding Horn Design for Plastic Assembly
The development of this custom enclosure required the creation of a specialized ultrasonic welding horn designed specifically for the unique geometry and joint requirements of the assembly. IDIS India’s engineering team utilized advanced finite element analysis to optimize the horn’s acoustic properties and ensure uniform energy distribution across the welding interface. The horn design incorporates multiple contact points to simultaneously weld several joint areas while maintaining consistent pressure and amplitude.
Our custom horn features precision-machined contact surfaces that match the enclosure’s specific geometry. The horn material selection and heat treatment processes ensure long service life and consistent welding performance across thousands of cycles. Special attention was given to the horn’s resonant frequency characteristics to achieve optimal coupling with our ultrasonic welding equipment.
The horn design process involved extensive prototyping and testing to validate welding parameters and joint quality. Multiple horn configurations were evaluated to determine the optimal balance between welding speed, joint strength, and cosmetic appearance. The final horn design delivers consistent, repeatable welds that meet or exceed industry standards for hermetic sealing and mechanical strength. This custom tooling represents a significant investment in manufacturing capability that benefits all future I-closure projects requiring ultrasonic assembly.
Frequency Matching Technology for Optimal Welding
Achieving perfect ultrasonic welding results requires precise frequency matching between the welding equipment, horn design, and plastic material characteristics. IDIS India invested considerable engineering effort in developing the optimal frequency parameters for this specific enclosure material and geometry. Our laboratory testing revealed that precise frequency control dramatically improves weld consistency while reducing cycle time and energy consumption.
The frequency matching process involves detailed analysis of the plastic material’s acoustic properties at various temperatures and stress levels. Our team conducted extensive testing to map the optimal frequency ranges for different joint configurations within the same assembly. This comprehensive approach ensures that each weld joint receives the precise energy input required for optimal bonding without causing material degradation or cosmetic defects.
Advanced frequency monitoring equipment continuously tracks welding parameters during production to maintain consistent results. Our quality systems automatically adjust welding parameters based on real-time feedback, compensating for normal variations in material properties and ambient conditions. This sophisticated control system represents a significant advancement in ultrasonic welding technology that IDIS India now offers across our complete range of I-closure products. The frequency matching technology has proven so effective that we’ve incorporated it into our standard enclosure design and manufacturing processes.
Custom Fixture Development for Welding Process
The ultrasonic welding process requires specialized fixtures to precisely position and hold the enclosure components during the welding cycle. IDIS India developed custom fixtures that ensure perfect alignment between mating parts while providing adequate access for the ultrasonic horn. The fixture design incorporates quick-change features that minimize setup time between production runs while maintaining exceptional repeatability.
Our fixture development process begins with detailed analysis of the enclosure geometry and welding requirements. Computer-aided design tools help optimize fixture contact points to minimize interference with the welding process while providing secure component restraint. The fixtures incorporate precision locating features that automatically align components within tight tolerances, eliminating the possibility of misaligned welds or assembly defects.
The completed fixtures underwent rigorous testing to validate their performance under production conditions. Load testing verified that the fixtures can withstand the significant forces generated during ultrasonic welding without deflection or component movement. Cycle time optimization studies confirmed that the fixture design supports efficient production rates while maintaining consistent quality standards. These custom fixtures represent valuable intellectual property that enhances IDIS India’s manufacturing capabilities and provides competitive advantages for future I-closure projects requiring ultrasonic assembly techniques.
This comprehensive custom development project demonstrates IDIS India’s complete capabilities in advanced plastic enclosure manufacturing. From initial design concept through specialized tooling development and production optimization, our team delivered a complete solution that exceeds customer expectations for quality, functionality, and manufacturability. The I-closure brand continues to set new standards for innovation and excellence in the plastic enclosure industry.
