Are you searching for a dependable junction box for your next electrical project? Then IDIS India’s 6-way junction box offers an ideal mix of size, capacity, and protection for medium-duty applications. The 195x145x75 mm enclosure provides proper wire management while accommodating multiple circuit connections and is rated at IP65 and IP67. As professionals in the industry, we designed our I-closures with real-world applications in mind, so you can trust them for wiring power distribution panels, controlling system setups, or pulling together numerous junctions.

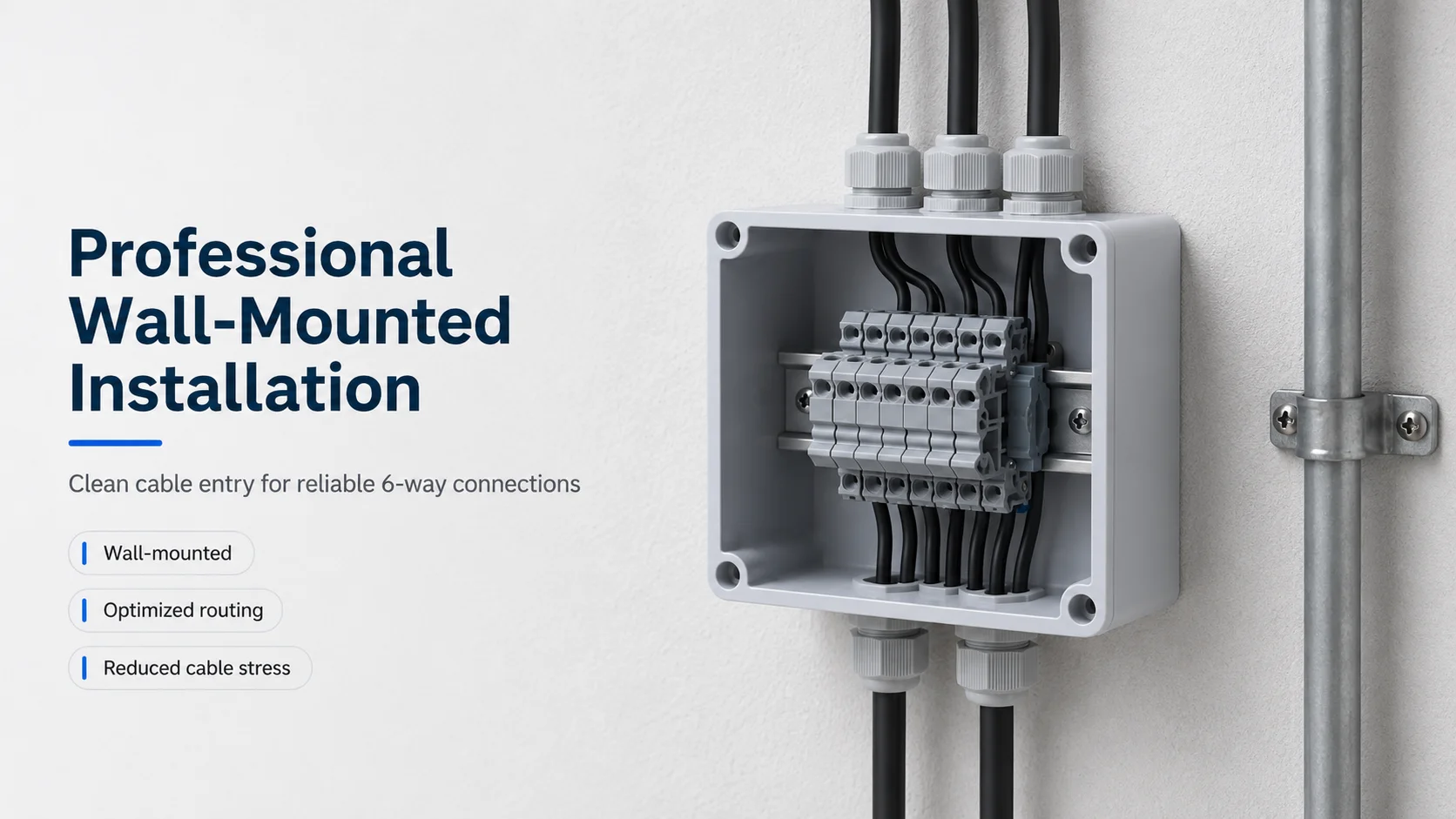

6-Port Entry Angle Optimization for Professional Installation
Having a clean cable entrance is not only aesthetically pleasing but has a significant impact on the long-term operating performance of a junction box. The user-centric locations of the ports in the 6 Way Junction Boxes allow for easy access to port locations by designing them with an intention of creating less stress on the cable during installation. The ports are located in such a way that you will not have any “fight” against sharp bends or high angles while running your cables. This design consideration extends to any time that multiple circuits must be run with proper separation. Flexible routing via top and side ports Standard PG and Metric Threading compatibility Pre-marked knockouts on the junction boxes cabling strain relief built in But the biggest difference between our design and other manufacturers is that, due to the spacing between the ports, the standard cable connections will not crowd one another. This means that you will have enough room to connect six separate wires without any of the components interfering with one another.
Medium Duty Load Distribution and Internal Layout
The 195x145x75mm internal dimensions provide enough working space for proper wire management without being oversized for typical applications. This medium footprint works well in most commercial electrical installations where space efficiency matters.
Inside, you’ll find adequate clearance for wire nuts, terminal blocks, or other connection methods. The internal ribbing provides mounting points for DIN rail or custom terminal arrangements. And the depth allows for proper wire loop management – no cramped connections that might cause problems later.
| Specification | 6-Way Junction Box |
|---|---|
| External Dimensions | 195 x 145 x 75mm (approx) |
| Internal Volume | Approximately 2.1 liters |
| Port Capacity | 6 cable entries (various sizes) |
| Material Options | ABS, Polycarbonate, PC/ABS |
| IP Rating | IP65, IP67 available |
| Operating Temperature | Varies by material (contact for specs) |
Junction Splice Access and Maintenance Considerations
If you want to get to connections long after installation, you can do so easily using one of our six-way junction boxes. They are designed with ease of maintenance in mind – the lid can be opened quickly and easily, without affecting the entry of any cables, and you can see all the connections you need without any obstruction. No need to disconnect any other wires before you reach a specific junction; there is complete accessibility to all connections on each of the junction boxes. This accessibility will save you time when troubleshooting, and decreases the chances of inadvertently disturbing an active connection. The quarter-turn latches or screw-down lids will maintain the integrity of the IP rating while allowing easy field access. The gasket system will continue to work effectively after multiple opening and closing of the cover – critical, where periodic inspections/ maintenance have been planned as part of the overall installation.

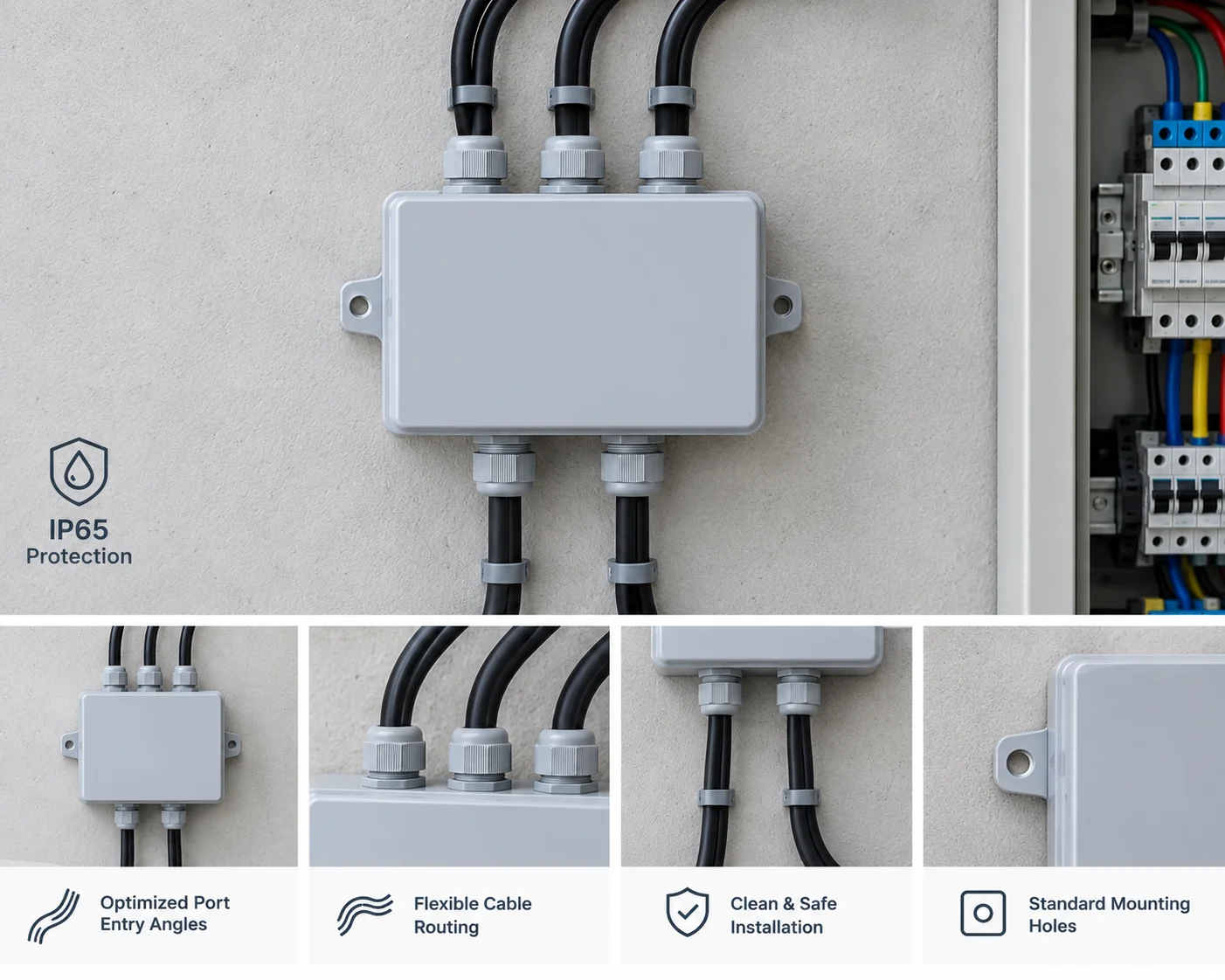

Contractor Field Installation Methods and Best Practices
It is important to consider how you will install your junction boxes when planning for your project. Our six-way junction boxes allow for various mounting methods to meet your project requirements. If you plan to mount the junction box in a wall where future access will be needed for repair or replacement, you can easily use the position of the mounting holes that are spaced to align with standard electrical box spacing. Mounting the junction box in a ceiling or above your work area also allows flexibility in positioning the box to optimize the cable entrance angles. The mounting holes on these junction boxes have been drilled and aligned with the most common configurations, so it will be easy to retrofit existing boxes to match. The junction boxes have removable mounting ears that will allow for flush mounting. Internal mounting points for terminal strips or other components are included in the junction box design. To seal the cable entry, a sealing gasket maintains the IP rating of the box until the final assembly. As an example, improper mounting techniques will affect the long-term reliability of a junction box. Inspect the condition of the cable glands and the cleanliness of the sealing gaskets at the time of final assembly to ensure proper functioning once installed. Small issues during installation can result in callbacks in the future.
Multi-Circuit Wire Bundling and Organization Systems
To manage multiple circuits in one junction box requires proper planning. Our six-way junction box gives sufficient space internally to separate and identify the different circuit types. In addition, you can create groups of related circuits but keep them electrically isolated when required. When bundling wires at the junction box you should consider heat dissipation and how you’ll need to access the future. The inside dimensions should have the ability to accommodate cable ties or other forms of organization without causing tight areas where insulation may suffer damage over an extended period of time. It becomes extremely important to have your circuits identified and colour coded as a result of having more than one point of connection. There is also room on the lid area for labels or diagrams about each circuit which will aid you with future maintenance. Professional labelling will help you spend less time troubleshooting and have fewer mistakes occurring while doing so.
Technical Specifications and Material Selection
IDIS India offers three different material options (6-way junction boxes) for various environments (such as ABS, polycarbonate, and PC-ABS). ABS is a relatively inexpensive material with good all-around use. Polycarbonate has a better resistance to UV light and higher maximum temperatures. PC-ABS has a mix of both properties (like a balance between price and performance). Each material maintains the same IP65 or IP67 level of seal when used properly with an appropriate cable gland. The selection of a material option is based upon environmental factors and budgetary constraints. We have obtained several quality certifications that include but are not limited to ISO9001, CE, and RoHS. These certifications establish quality standards for manufacturing and materials for all the products during production runs; NABL testing establishes that each of our test procedures used for determining IP ratings within our products is valid.
MOQ and Ordering Information
6-way junction boxes can typically be purchased in minimal amounts (volume) for both large scale projects as well as small installations. The minimum quantity required to be ordered will depend on the combination of material being purchased and how the junction box is to be customized. Lead times on certain types of products can be found out through our customer service representatives, depending on when the current production schedules will allow for the manufacture of an order’s specifications. Standard Box Configurations generally have shorter lead times than custom/leads. For current pricing, availability and technical specifications please contact IDIS India directly. Technical assistance from our Engineering Team is also available to provide assistance in matching junction box specifications to an application and providing installation guidelines. Are you ready to specify 6-way junction boxes for your next project? Contact I-closure for samples, technical drawings or specific recommendations relative to your project. Provide us with your project requirements so we may help you make sure your electrical installations operate effectively for many years.
