560x380x180mm Custom Electrical Enclosure – Details
The largest ABS opaque enclosure in the range — 560x380mm footprint with 180mm depth provides maximum internal space for large industrial panel assemblies with multiple component rows, extensive cable management, and heavy-duty mounting arrangements. Stainless steel M8 fasteners, heavy brass inserts, and stainless steel wall mount clamps ensure structural integrity for heavy panel installations. Suited for main distribution panels, large contactor enclosures, and major industrial control boxes.
Isometric View

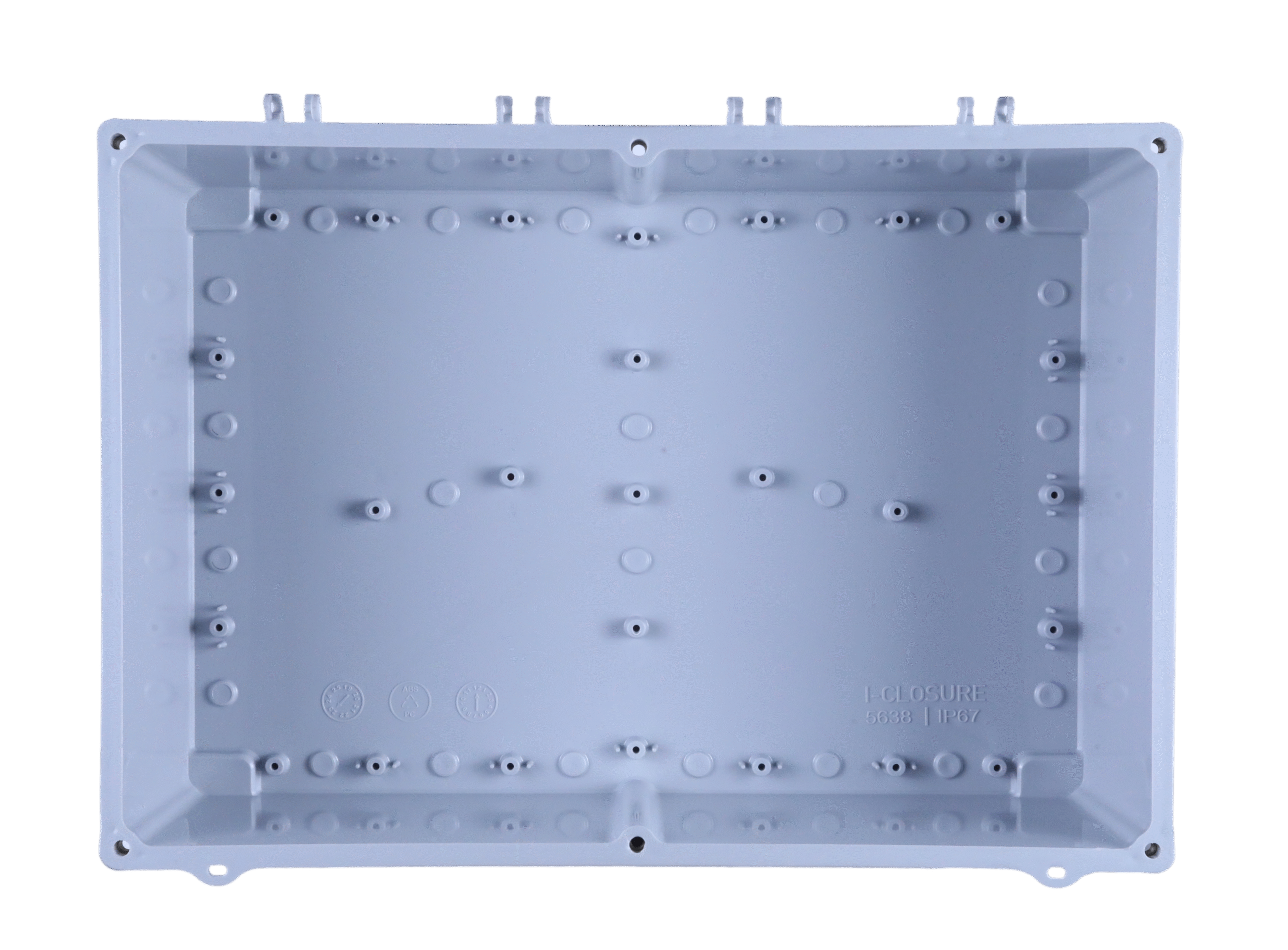

Inside View
Example
Accessories of 560x380x180mm Custom Electrical Enclosure
Idis India a reputed, cost effective and reliable partner for complete solution of Waterproof Electrical enclosure and their accessories. Mounting plate helps to fix pcbs and other components. Air vents, Cable Glands, Pole clamp and customized holes and cutouts available. Below is the Accessories of 100x100x80mm Electrical Enclosure by Idis India
Cable Gland
Nylon cable glands suitable for IP65 Ratings from reputed manufacturer. Available size are PG9 and PG13.5 as a standard SKU each pack of 100.
Air Vents
Suitable for highly critical enclosures where chances of heat builtup in IP rated enclosures. IP67 rating will be Void.
Din Rail
Major of electrical components are to be mounted on standard 35mm width Din rails. Available standard cut length as per enclosures.
Downloads of 560x380x180mm Custom Electrical Enclosure
Get the most useful resources of the enclosures here. Below are the links to donwload product datasheet, Test reports, autocad DWG 2d Drawings and video link of the product.
Key Features and Benefits
- Complete Weather Protection: The IP67 water and dust protection rating makes sure your equipment stays completely safe from dust ingress and water dipping up to 1 meter depth.
- This makes it ideal for outdoor installations where rain, dust storms, and flooding pose constant threats to sensitive electronics.
- Wide Operating Temperature Range: Built to handle extreme conditions from -20°C to +70°C, this enclosure keeps its protective properties in freezing winters and scorching summers.
- The thermo plastic construction prevents cracking and warping that metal enclosures often suffer in temperature fluctuations.
- Easy Access Design: The hinged top cover with secure latches allows quick access for maintenance without removing the entire enclosure.
- Red hinges gives visual confirmation of proper closure, while the silicon sponge O-ring creates a perfect seal every time.
- Secure Mounting System: Pre-designed mounting points at 495mm × 407mm centers simplify fitting planning.
- The included SS 304 stainless steel wall clamps and screws resist corrosion, ensuring long-term reliability in coastal and industrial environments.
- Impact Resistant Build: IK07 impact resistance protects against accidental damage from tools, falling objects, and vandalism.
- The ABS grey construction keeps its strength and appearance even after years of exposure to UV radiation.
Technical Specifications
- This enclosure measures 560mm in width, 380mm in length, and 180mm in depth, providing ample space for control panels, junction boxes, and electronic modules.
- The ABS grey material construction offers excellent chemical resistance and keeps color stability over time.
- The mounting system uses 1.2mm galvanized steel plates with brass insert nuts (M8 × 13 × 7) for secure fitting.
- All screws are SS 304 grade with M8 Pan Phillips heads for corrosion resistance.
- The wall mounting clamps are 2mm thick stainless steel, designed to handle wind loads and vibrations.
- Internal dimensions accommodate standard DIN rails and PCB mounting systems.
- The white O-ring seal keeps IP67 protection while allowing easy replacement during scheduled maintenance.
- Operating specifications include CE and ROHS compliance for European markets, plus IS-13360 certification for Indian electrical standards.
Industries and Applications
- Main Power Panels: Use as main LT switchgear enclosures in large factories, hospitals, or shopping malls.
- Heavy Engineering: Protect VFDs, soft starters, and motor control centres in steel plants or cement factories.
- Data Centres: Mount server room power distribution and UPS control units in large weatherproof cabinets.
- Shipbuilding: Protect navigation, propulsion control, and communication panels from sea spray and humidity.
- Infrastructure Projects: Use in metro rail, airports, and expressways to protect large signalling and control panels.
