400x400x160mm PC ABS Electrical Enclosure – Details
This tough PC-ABS enclosure is 400x400x160mm in size and rated IP67 for full dust and water protection. Perfect for main switchgear, VFDs, UPS systems, and large distribution panels in outdoor or industrial locations. The solid grey lid keeps your electronics fully protected and hidden.

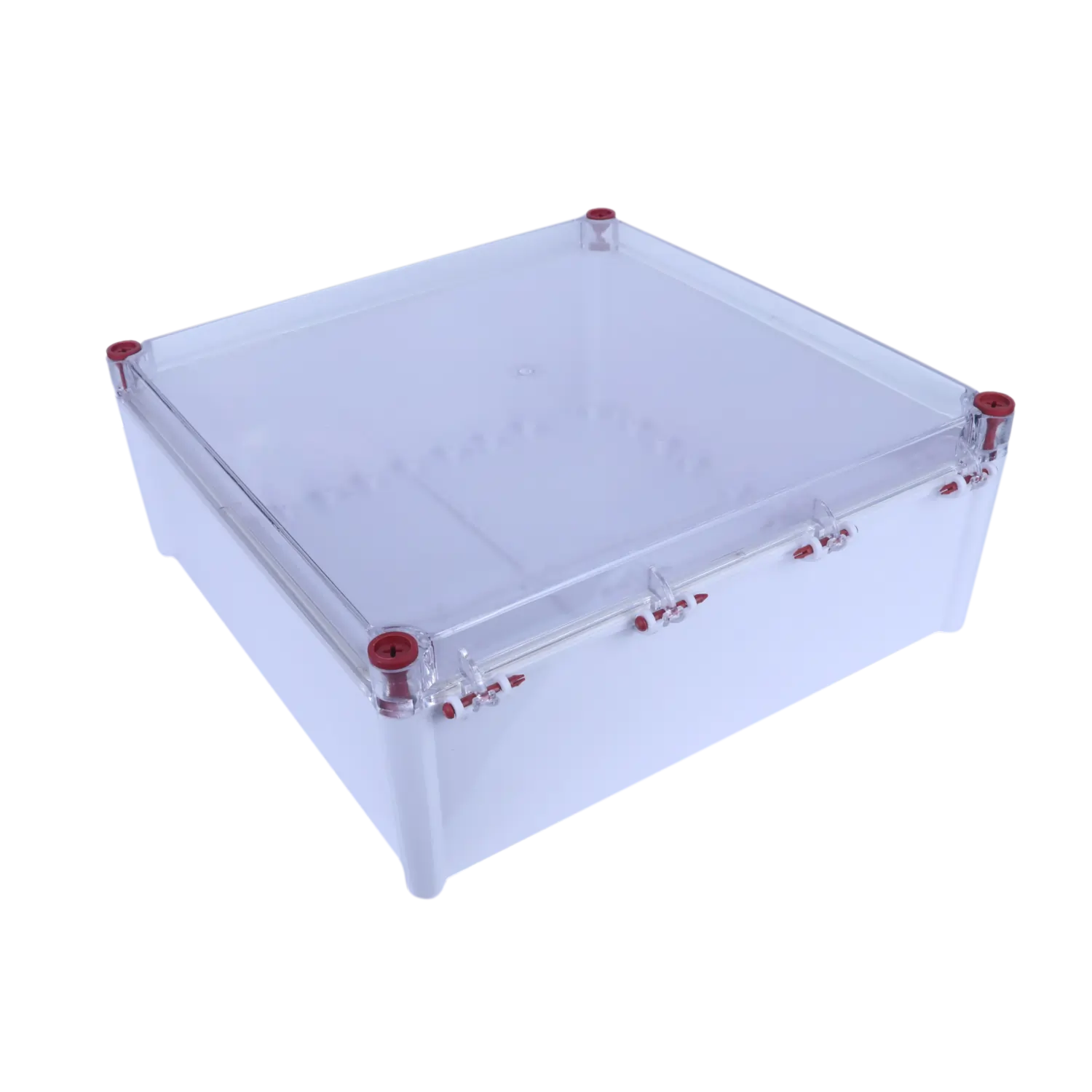

Isometric View
Inside View
Example
Accessories of 400x400x160mm PC ABS Electrical Enclosure
Idis India a reputed, cost effective and reliable partner for complete solution of Waterproof Electrical enclosure and their accessories. Mounting plate helps to fix pcbs and other components. Air vents, Cable Glands, Pole clamp and customized holes and cutouts available. Below is the Accessories of 100x100x80mm Electrical Enclosure by Idis India
Cable Gland
Nylon cable glands suitable for IP65 Ratings from reputed manufacturer. Available size are PG9 and PG13.5 as a standard SKU each pack of 100.
Air Vents
Suitable for highly critical enclosures where chances of heat builtup in IP rated enclosures. IP67 rating will be Void.
Din Rail
Major of electrical components are to be mounted on standard 35mm width Din rails. Available standard cut length as per enclosures.
Downloads of 400x400x160mm PC BAS Electrical Enclosure
Get the most useful resources of the enclosures here. Below are the links to donwload product datasheet, Test reports, autocad DWG 2d Drawings and video link of the product.
Key Features and Benefits
- Protection from rain and wind should not be an afterthought when designing your outdoor solution; it’s an absolute necessity.
- The IP67 rating on your enclosure guarantees that no rain or snow will penetrate the enclosure. so, you can be confident that your electrical components are protected even under extreme weather conditions such as those experienced during monsoon systems and flooding.
- The enclosure is designed to withstand temperature variances which can exceed 40 degrees in some locations; in fact, the enclosure can operate successfully at temperatures as low as -20 degrees and as high as +60 degrees.
- This means that regardless of whether your enclosure is located in the snow-laden mountains of Himachal Pradesh or under the blazing sun of Rajasthan, your electrical components will be adequately protected from extreme climates.
- The top cover of the enclosure is hinged, and can be easily opened and closed to gives quick and easy access to your electrical components for maintenance and fitting.
- Red nylon screws are used in conjunction with a microcellular polyurethane gasket to create a secure closure while allowing for easy servicing of your electrical components.
- The enclosure features a prepared-to-install mounting system that includes mounting dimensions of 378 mm x 378 mm, along with an accessory kit containing the mounting screws for both wall mounting and DIN rail mounting, as well as washers, which allows for the efficient mounting of the enclosure from day one.
- The IK07 impact resistance rating of the enclosure indicates the enclosure’s ability to resist mechanical impacts (such as from tools and vibration) and other types of mechanical damage that may occur in industrial environments.
- The robust construction of ABS plastic gives a high degree of resistance to wear and tear, as well as other types of mechanical abuse that occur in industrial environments, and so, with an enclosure of this type, you will makes sure the longevity of your equipment.
Technical Specifications
- With its size of 400mm wide x 400mm long x 160mm deep, this box has plenty of internal volume for housing control panels and junction boxes along with providing sufficient room for the electrical distribution equipment to be used within them.
- The required mounting footprint is 378mm x 378mm for proper fitting.
- The construction consists of a transparent (polycarbonate) cover at the top and milky coloured opaque (ABS grey) bottom.
- There are red nylon screws with 30% glass fibre content which also gives superior strength and resistance to corrosion.
- The O-ring (silicon sponge) has provided consistent, reliable sealing for the many years it has been used.
- Certifications for this unit include CE and ROHS, which both signify that the unit meets the strict requirements of the international quality standards.
- The unit is rated as IS-13360 for inflatability and UV presence standard, allowing this enclosure to withstand prolonged outdoor use.
- Operating temperature range for this enclosure is -20° C up through +70° C to accommodate the extreme weather experienced in the many geographic regions.
Industries and Applications
- Main Power Panels: Use as main LT switchgear enclosures in large factories, hospitals, or shopping malls.
- Heavy Engineering: Protect VFDs, soft starters, and motor control centres in steel plants or cement factories.
- Data Centres: Mount server room power distribution and UPS control units in large weatherproof cabinets.
- Shipbuilding: Protect navigation, propulsion control, and communication panels from sea spray and humidity.
- Infrastructure Projects: Use in metro rail, airports, and expressways to protect large signalling and control panels.
