400x300x150mm Custom PC ABS Electrical Enclosure – Details
Measuring 400x300x150mm, this IP67 enclosure is made from strong PC-ABS material. It is designed to safely house main switchgear, VFDs, UPS systems, and large distribution panels in harsh environments. A sturdy grey lid makes sure your components stay secure and out of sight.

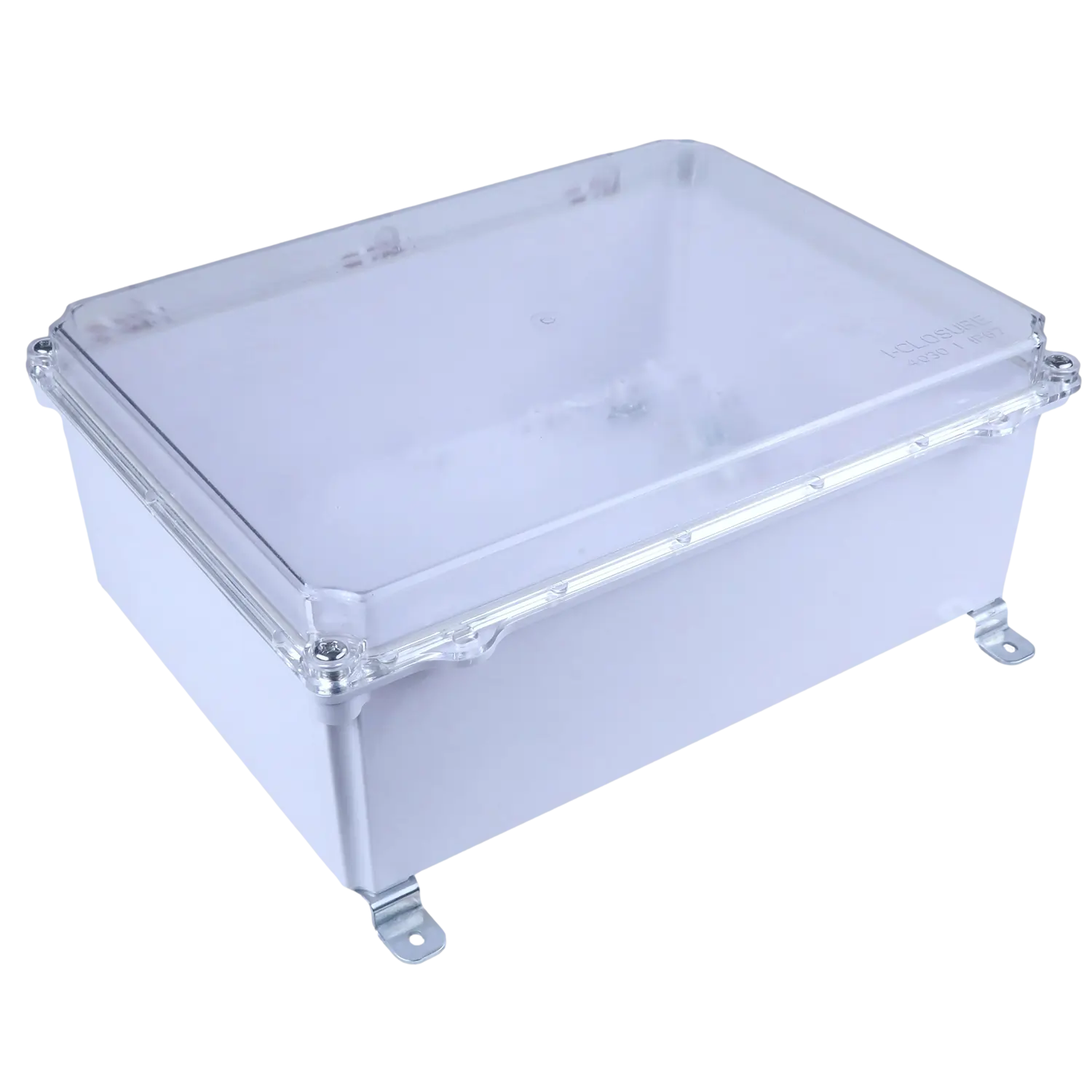

Isometric View

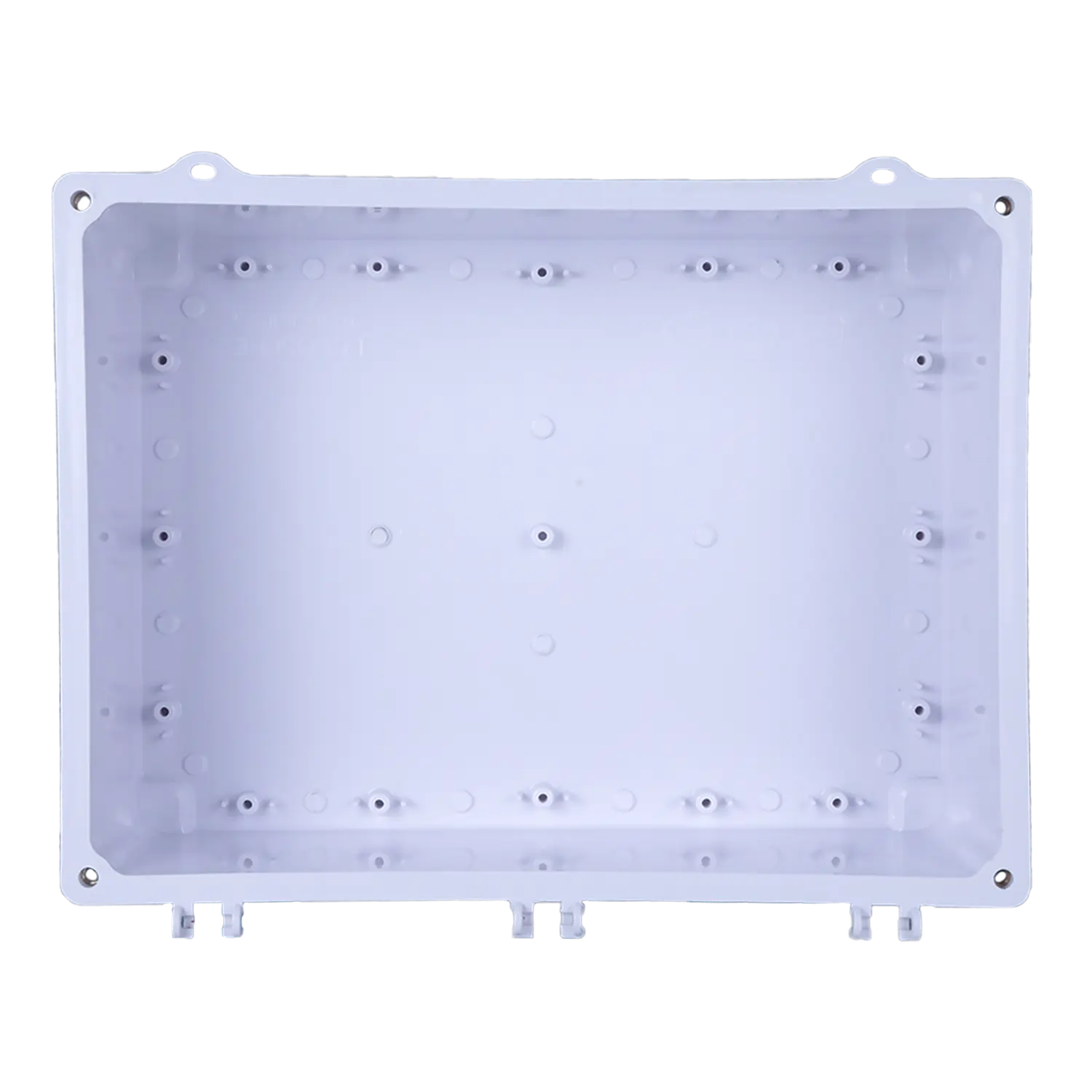

Inside View
Example
Accessories of 400x300x150mm Custom PC ABS Electrical Enclosure

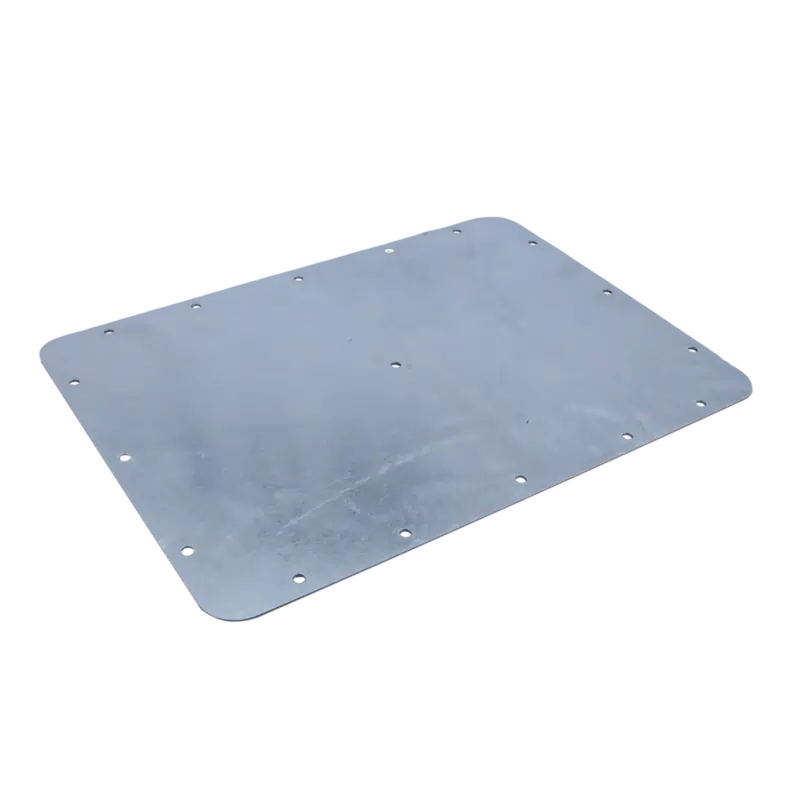

Idis India a reputed, cost effective and reliable partner for complete solution of Waterproof Electrical enclosure and their accessories. Mounting plate helps to fix pcbs and other components. Air vents, Cable Glands, Pole clamp and customized holes and cutouts available. Below is the Accessories of 100x100x80mm Electrical Enclosure by Idis India
Cable Gland
Nylon cable glands suitable for IP65 Ratings from reputed manufacturer. Available size are PG9 and PG13.5 as a standard SKU each pack of 100.
Air Vents
Suitable for highly critical enclosures where chances of heat builtup in IP rated enclosures. IP67 rating will be Void.
Din Rail
Major of electrical components are to be mounted on standard 35mm width Din rails. Available standard cut length as per enclosures.
Downloads of 400x300x150mm Custom PC ABS Electrical Enclosure
Get the most useful resources of the enclosures here. Below are the links to donwload product datasheet, Test reports, autocad DWG 2d Drawings and video link of the product.
Key Features and Benefits
- All-Weather Performance:
- Based on the IP67 rating, your electrical equipment is fully protected from dust and from being submerged to one meter in water.
- The silicon sponge o-ring creates the ideal weather seal between the top cover and base making it perfectly suited for an outdoor fitting where there is continuous exposure to weather.
- Constant Monitoring: The clear polycarbonate top cover allows for visual inspection of the internal equipment, LED indicator status, and display without the need to open the enclosure saving time during maintenance and allowing for rapid identification of problems while still maintaining IP67 rating.
- Accessible Design: Lockable hinged design with SS304-M8 pan head locking screws allows for secure closure and simple opening when needed.
- Brass insert nuts gives for long-lasting integrity of the threaded fasteners even after numerous opening/closing cycles.
- Temperature Tolerant: Operating temperature range of -20°C to +70°C allows this enclosure to be effectively used in extreme environmental conditions.
- This includes use in the hot weather of the desert, to the cold weather of winter, whilst maintaining the structural characteristics, and the protective characteristics of the ABS and polycarbonate materials.
- Adaptable Mounting Options: this enclosure offers several alternative mounting configurations including wall clamps, DIN rail compatible, fixed directly to structure, enabling it be utilized for many mounting applications.
- The inside mounting dimensions of this enclosure measure 344mm x 312mm providing plenty of space within the enclosure for equipment arrangement.
Technical Specifications
- The enclosure has a width of 400mm, a length of 300mm, and a depth of 150mm to gives ample space for installing electrical wiring and electrical components inside of the enclosure.
- The external mounting measurements of 344mm x 312mm make this enclosure an ideal fit for use in standard installations of electrical panels.
- This enclosure is constructed by using a clear polycarbonate top with a solid milky white clear Opaque ABS bottom.
- Red hinges are used to make them easily identifiable and safe to use and white O-rings gives water tight sealing.
- All of the screws in this enclosure are type SS304-M8 pan head Phillips stainless steel screw fasteners to be corrosion resistant.
- This enclosure has been tested and meets the requirements of the IP67 water and dust protection classification, the IK07 impact resistance classification, and the IS-13360 fire resistance classification.
- UV protection is provided to this enclosure for protection against UV damage for outdoor use.
- The enclosure has CE and ROHS certifications for international quality assurance compliance.
- The wall mounting hardware supplied with the enclosure consists of clamps made of type SS-304 stainless steel, and 8 x 32 pan head Phillips screw fasteners.
- The fitting for this enclosure also includes additional fitting hardware such as DIN rail screws (10 x 13 pan head Phillips), wall plugs (10 x 35), and M4 washers for multiple fitting options.
Industries and Applications
- Main Power Panels: Use as main LT switchgear enclosures in large factories, hospitals, or shopping malls.
- Heavy Engineering: Protect VFDs, soft starters, and motor control centres in steel plants or cement factories.
- Data Centres: Mount server room power distribution and UPS control units in large weatherproof cabinets.
- Shipbuilding: Protect navigation, propulsion control, and communication panels from sea spray and humidity.
- Infrastructure Projects: Use in metro rail, airports, and expressways to protect large signalling and control panels.
