290x200x130mm Custom Electrical Enclosure – Details
Large ABS opaque enclosure with 290x200mm footprint and 130mm depth — the increased depth over smaller sizes gives more room for tall components, bulkier cable assemblies, and deeper mounting arrangements. The wide 290mm base suits multi-row component layouts with generous cable routing space. Widely customised for CCTV panels, router enclosures, distribution boards, and industrial control boxes requiring multiple gland entries and robust IP67 protection.
Isometric View

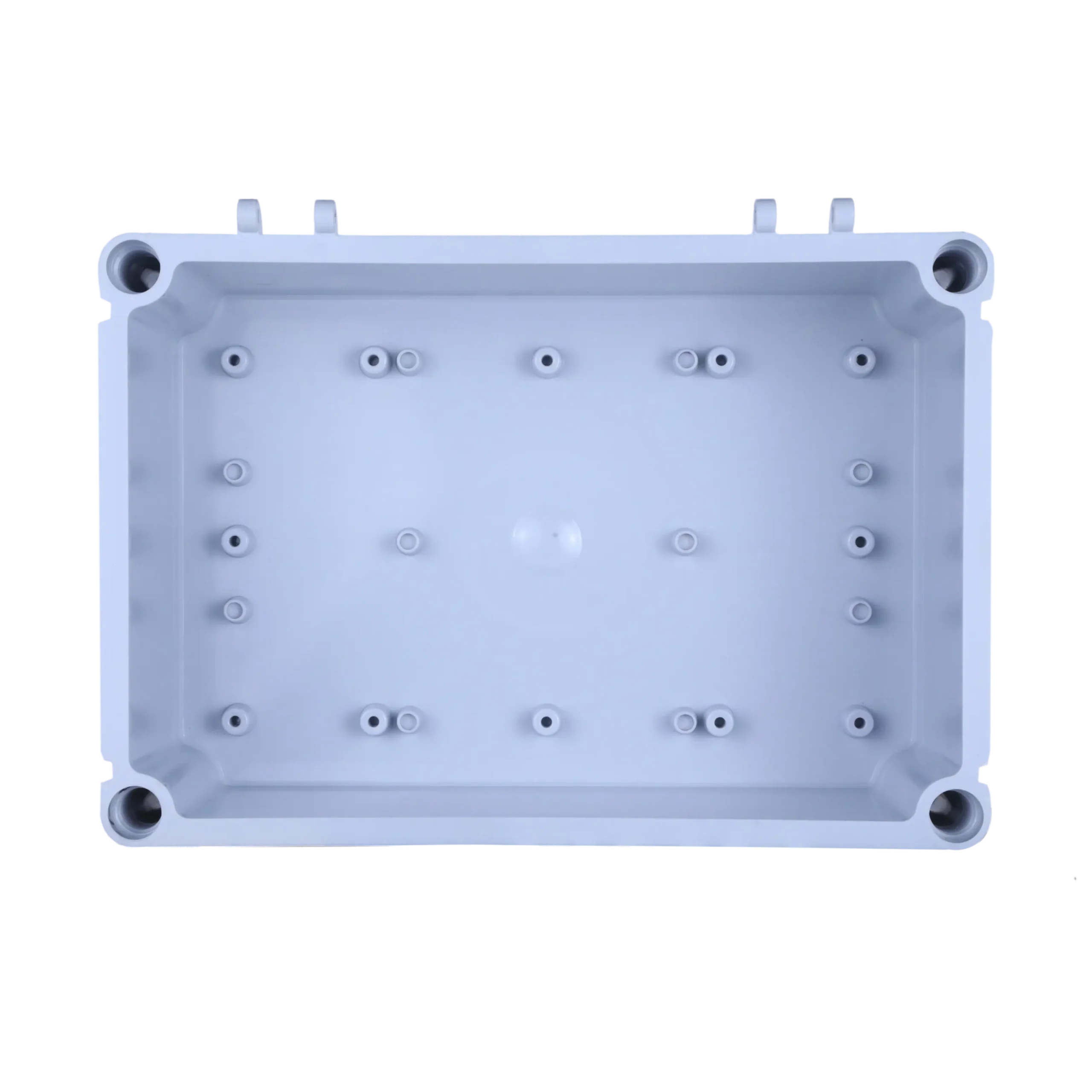

Inside View
Example
Accessories of 290x200x130mm Custom Electrical Enclosure
Idis India a reputed, cost effective and reliable partner for complete solution of Waterproof Electrical enclosure and their accessories. Mounting plate helps to fix pcbs and other components. Air vents, Cable Glands, Pole clamp and customized holes and cutouts available. Below is the Accessories of 100x100x80mm Electrical Enclosure by Idis India
Cable Gland
Nylon cable glands suitable for IP65 Ratings from reputed manufacturer. Available size are PG9 and PG13.5 as a standard SKU each pack of 100.
Air Vents
Suitable for highly critical enclosures where chances of heat builtup in IP rated enclosures. IP67 rating will be Void.
Din Rail
Major of electrical components are to be mounted on standard 35mm width Din rails. Available standard cut length as per enclosures.
Downloads of 290x200x130mm Custom Electrical Enclosure
Get the most useful resources of the enclosures here. Below are the links to donwload product datasheet, Test reports, autocad DWG 2d Drawings and video link of the product.
Key Features and Benefits
- Complete Environmental Protection: The IP67 water and dust protection rating makes sure your electrical components stay completely protected from dust, dirt, and water dipping up to 1 meter depth.
- This makes it perfect for outdoor installations and industrial environments where moisture and contaminants are constant threats.
- Superior ABS Construction: Made from high-grade ABS plastic in professional grey finish, this enclosure offers excellent impact resistance rated at IK07.
- The material withstands extreme temperatures from -20°C to +70°C, ensuring reliable performance across diverse climate conditions throughout India.
- Easy Access Design: The hinged top cover design allows quick and convenient access to internal components during maintenance and fitting.
- Red nylon screws with 30% glass fiber reinforcement gives secure closure while remaining easy to operate with standard tools.
- Professional Mounting System: Pre-designed mounting points at 178mm × 268mm spacing allow secure wall fitting using the included 6×32 pan head Phillips screws.
- The robust mounting system makes sure stable fitting even in high-vibration industrial environments.
- Quality Sealing System: Silicon sponge O-ring gasket creates a reliable seal between the top cover and bottom section.
- This professional sealing system keeps the IP67 rating even after repeated opening and closing cycles during maintenance operations.

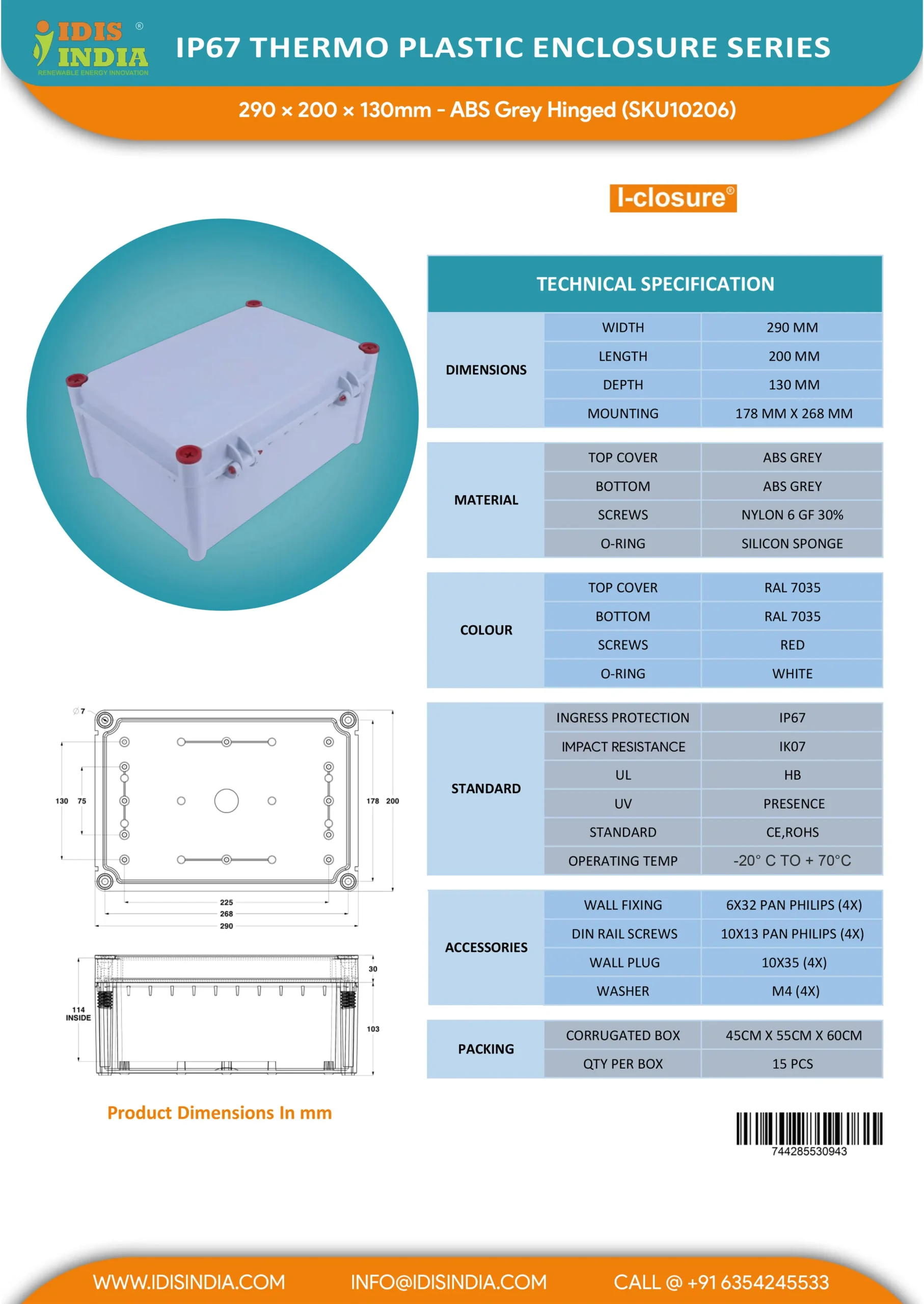

Technical Specifications
- This enclosure measures 290mm in width, 200mm in length, and 130mm in depth, providing ample space for electrical components, terminal blocks, and wiring.
- The external mounting dimensions are 178mm × 268mm, designed for standard electrical panel spacing requirements.
- Both the top cover and bottom sections are made from ABS plastic in RAL 7035 grey color, offering professional appearance and UV resistance for outdoor applications.
- The silicon sponge O-ring gasket makes sure long-term sealing performance, while the white O-ring gives visual confirmation of proper sealing.
- The enclosure meets multiple international standards including UL certification for electrical safety, CE marking for European compliance, and ROHS certification for environmental safety.
- UV resistance makes sure the grey finish remains stable under direct sunlight exposure without cracking or fading.
- Wall mounting accessories include four 6×32 pan head Phillips screws for secure fitting, along with four 10×35 wall plugs and M4 washers.
- This complete mounting kit makes sure professional fitting on concrete, brick, or metal surfaces.
Industries and Applications
- Main Electrical Distribution: Use as LT panels, MCB boxes, or busbar enclosures in factories and large buildings.
- Oil and Gas: Protect junction boxes, pressure transmitters, and valve controllers in refineries and petrol stations.
- Wind and Solar Farms: House inverter controls, battery management systems, and grid protection relays outdoors.
- Defence and Security: Mount rugged communication and electronics in remote outdoor border or military locations.
- Paper and Sugar Mills: Protect motor control centres and PLC panels from steam, dust, and high humidity.
