210x190x100mm Custom Electrical Enclosure – Details
ABS opaque enclosure with wide 210x190mm footprint — the larger base area gives more freedom for internal layout with DIN rail, terminal blocks, cable management, and multiple gland entry positions. 100mm depth suits most medium electrical panel assemblies. Widely customised for home automation distribution panels, industrial control boxes, and outdoor electrical enclosures requiring multiple cable entries, mounting provisions, and lock arrangements.
Isometric View

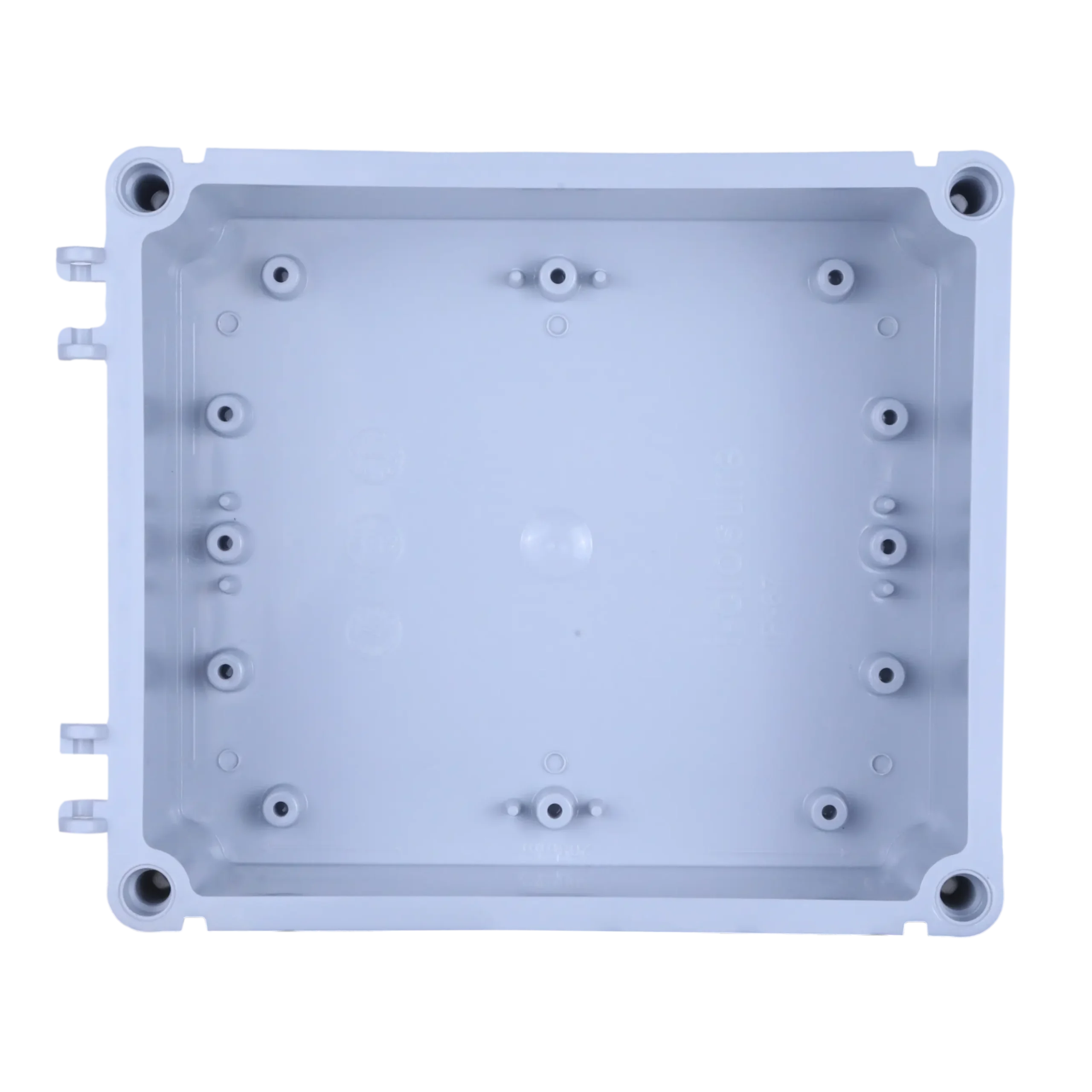

Inside View
Example
Accessories of 210x190x100mm Custom Electrical Enclosure
Idis India a reputed, cost effective and reliable partner for complete solution of Waterproof Electrical enclosure and their accessories. Mounting plate helps to fix pcbs and other components. Air vents, Cable Glands, Pole clamp and customized holes and cutouts available. Below is the Accessories of 100x100x80mm Electrical Enclosure by Idis India
Cable Gland
Nylon cable glands suitable for IP65 Ratings from reputed manufacturer. Available size are PG9 and PG13.5 as a standard SKU each pack of 100.
Air Vents
Suitable for highly critical enclosures where chances of heat builtup in IP rated enclosures. IP67 rating will be Void.
Din Rail
Major of electrical components are to be mounted on standard 35mm width Din rails. Available standard cut length as per enclosures.
Downloads of 210x190x100mm Custom Electrical Enclosure
A reliable 210x190x100mm enclosure made from ABS Grey, designed for motor control centres, distribution boards, and automation panels. With IP67 protection, it handles rain, dust, and rough conditions easily. Its opaque cover gives full UV and light protection to sensitive components.
Key Features and Benefits
- Complete Weather Protection: The IP67 water and dust protection rating makes sure your electrical components stay completely safe from dust ingress and water dipping up to 1 meter depth.
- This makes it perfect for outdoor installations where equipment faces rain, dust storms, and harsh weather conditions throughout the year.
- Temperature Resilient Design: Operating reliably from -20°C to +70°C, this enclosure handles extreme temperature variations without cracking or warping.
- The thermo plastic ABS construction keeps its structural integrity whether installed in freezing cold storage facilities or hot desert locations.
- Easy Access Hinged Design: The integrated hinge system with silicon sponge O-ring sealing allows quick access for maintenance while maintaining perfect sealing when closed.
- Red nylon screws gives secure closure and are easily identifiable for maintenance teams working in low light conditions.
- Impact Resistant Construction: With IK07 impact resistance rating, this enclosure withstands mechanical impacts from tools, debris, and accidental knocks.
- The grey ABS material (RAL 7035 standard) resists UV damage and keeps its appearance even after years of outdoor exposure.
- Professional Mounting System: Pre-designed mounting points at 178mm×208mm spacing makes sure secure wall fitting.
- The included accessories package contains everything needed for professional mounting including pan Phillips screws and washers.
Technical Specifications
- This enclosure measures 210mm width, 190mm length, and 100mm depth, providing ample space for terminal blocks, relays, small PLCs, and control modules.
- Both the top cover and bottom are made from high-grade ABS material in RAL 7035 grey color for professional appearance and UV resistance.
- The sealing system uses a white silicon sponge O-ring that keeps its elasticity across the full operating temperature range.
- Red nylon 6 GF 30% screws gives 30% glass fiber reinforcement for extra strength and corrosion resistance.
- The enclosure meets multiple international standards including CE and ROHS compliance for European markets, plus UL certification for North American applications.
- Standard accessories include 6×32 pan Phillips screws for wall fixing, 10×13 pan Phillips screws for DIN rail mounting, 10×35 wall plugs, and M4 washers.
- Each unit comes with comprehensive mounting hardware eliminating the need for separate purchases.
Industries and Applications
- Main Electrical Distribution: Use as LT panels, MCB boxes, or busbar enclosures in factories and large buildings.
- Oil and Gas: Protect junction boxes, pressure transmitters, and valve controllers in refineries and petrol stations.
- Wind and Solar Farms: House inverter controls, battery management systems, and grid protection relays outdoors.
- Defence and Security: Mount rugged communication and electronics in remote outdoor border or military locations.
- Paper and Sugar Mills: Protect motor control centres and PLC panels from steam, dust, and high humidity.
