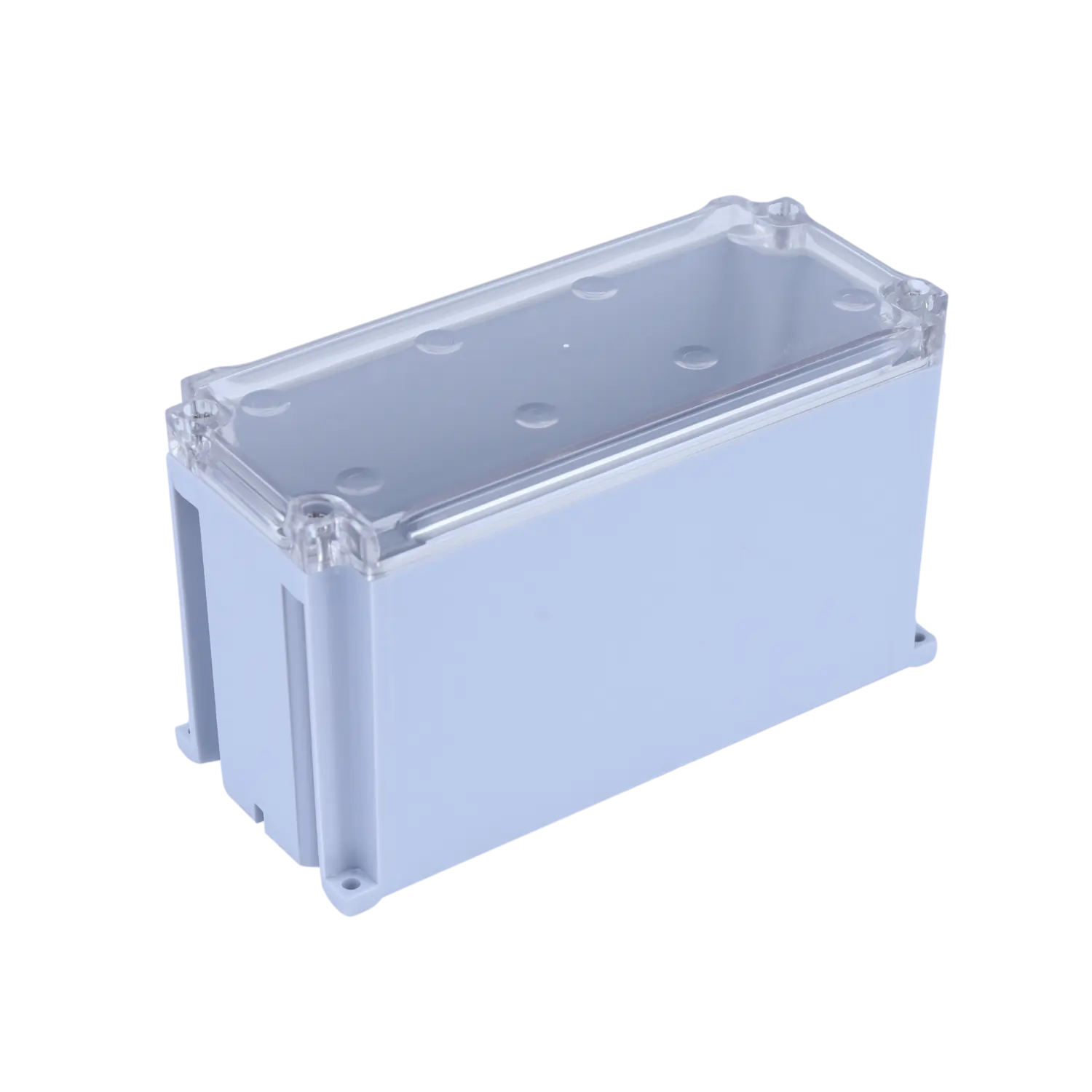

180x80x100mm PC ABS Electronic Enclosure – Details
Measuring 180x80x100mm, this IP67 enclosure is made from strong clear PC material. It is designed to safely house meters, display panels, and monitoring electronics in harsh environments. The see-through lid saves time during inspection and maintenance.
Isometric View
Inside View
With Mounting Plate
Accessories of 180x80x100mm PC ABS Electronic Enclosure
Idis India a reputed, cost effective and reliable partner for complete solution of Waterproof Electrical enclosure and their accessories. Mounting plate helps to fix pcbs and other components. Air vents, Cable Glands, Pole clamp and customized holes and cutouts available. Below is the Accessories of 180x80x100mm PC ABS Electronic Enclosure by Idis India
Cable Gland
Nylon cable glands suitable for IP65 Ratings from reputed manufacturer. Available size are PG9 and PG13.5 as a standard SKU each pack of 100.
Air Vents
Suitable for highly critical enclosures where chances of heat builtup in IP rated enclosures. IP67 rating will be Void.
Pole Mount Bracket Small
Single clamp suitable for mid sized enclosures.
Notes:Â Need to make drill of Dia 5mm in enclosures to fix.
Suitable for 2 inch to 4 inch Pole Dia
Material : Nylon 6 + 30% Glass Filled
Downloads of 180x80x100mm PC ABS Electronic Enclosure
Get the most useful resources of the enclosures here. Below are the links to donwload product datasheet, Test reports, autocad DWG 2d Drawings and video link of the product.
Key Features and Benefits
- Complete Weather Protection: The IP67 water and dust protection rating makes sure your electronics stay completely safe from dust, dirt, and water dipping.
- Even in heavy rain, flooding, or dusty conditions, your sensitive components remain fully protected and working.
- Crystal Clear Monitoring: The transparent ABS top cover lets you monitor your equipment status, LED indicators, and displays without opening the enclosure.
- This saves time during maintenance checks and reduces the risk of accidentally exposing components to environmental damage.
- Temperature Resilient Design: Built to handle extreme conditions from -20°C to +70°C, this enclosure performs reliably across India’s diverse climate zones.
- From the cold mountains of Himachal to the hot deserts of Rajasthan, your electronics stay protected year-round.
- Quick and Secure fitting: The included M4×16 pan Phillips screws with nuts gives strong wall mounting, while 6×10 pan Phillips screws enable easy DIN rail fitting.
- The EPDM sponge O-ring creates a perfect seal every time you close the enclosure.
- Impact Resistant Construction: With IK08 impact resistance rating, this enclosure withstands accidental hits, vibrations, and mechanical stress common in industrial settings.
- The grey ABS bottom gives excellent structural strength and chemical resistance.
Technical Specifications
- This enclosure measures 180mm in width, 80mm in length, and 100mm in depth, with mounting dimensions of 171.5mm × 71.5mm for secure fitting.
- The top cover is made from transparent ABS plastic for clear visibility, while the bottom uses grey ABS material for durability.
- The unit features nickel-coated screws that resist corrosion and a white EPDM sponge O-ring that keeps the weatherproof seal.
- International certifications include CE and ROHS compliance for European markets, plus UL 94-HB fire rating and UV resistance for long-term outdoor use.
- Wall mounting hardware includes four M4×16 pan Phillips screws with nuts, while DIN rail fitting uses four 6×10 pan Phillips screws.
- Each corrugated shipping box contains 50 pieces with dimensions of 46cm × 34cm × 28cm for efficient bulk ordering.
Industries and Applications
- Display Panel Assemblies: Show meter readings, energy data, or alerts through the clear lid without opening.
- Water Purification Plants: Mount dosing pump controls and flow meters in wet areas where easy visibility is key.
- Cold Storage Monitoring: Keep temperature controllers and alarms visible in refrigeration rooms or cold chain units.
- Greenhouse Automation: House sensors and timers for irrigation, fans, and grow lights in high-moisture areas.
- Marine Instrument Panels: Protect navigation instruments on boats and fishing vessels from saltwater splashes.
