150x150x70mm Electronic Enclosure – Details
Built to last in tough conditions, this 150x150x70mm enclosure is made from ABS Grey and carries an IP67 rating. It is ideal for protecting PLC modules, relay panels, and industrial control boards. The solid grey lid keeps your electronics fully protected and hidden.

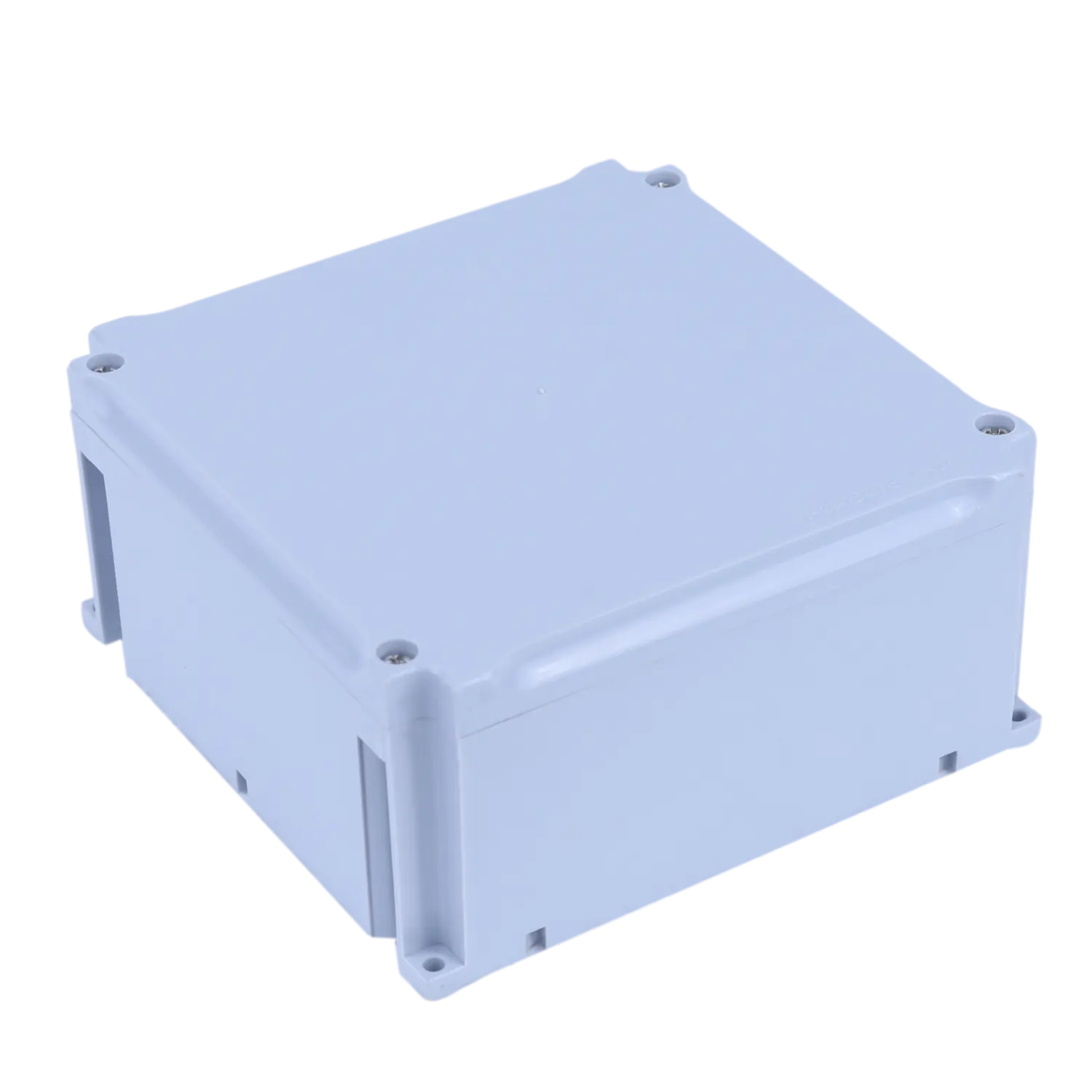

Isometric View
Inside View
With Mounting Plate
Accessories of 150x150x70mm Electronic Enclosure
Idis India a reputed, cost effective and reliable partner for complete solution of Waterproof Electrical enclosure and their accessories. Mounting plate helps to fix pcbs and other components. Air vents, Cable Glands, Pole clamp and customized holes and cutouts available. Below is the Accessories of 100x100x80mm Electrical Enclosure by Idis India
Cable Gland
Nylon cable glands suitable for IP65 Ratings from reputed manufacturer. Available size are PG9 and PG13.5 as a standard SKU each pack of 100.
Air Vents
Suitable for highly critical enclosures where chances of heat builtup in IP rated enclosures. IP67 rating will be Void.
Pole Mount Bracket Small
Single clamp suitable for mid sized enclosures.
Notes:Â Need to make drill of Dia 5mm in enclosures to fix.
Suitable for 2 inch to 4 inch Pole Dia
Material : Nylon 6 + 30% Glass Filled
Downloads of 150x150x70mm Electronic Enclosure
Get the most useful resources of the enclosures here. Below are the links to donwload product datasheet, Test reports, autocad DWG 2d Drawings and video link of the product.
Key Features and Benefits
- Complete Environmental Protection: This enclosure meets IP67 water and dust protection standards, ensuring your electronics stay completely safe from dust particles and water dipping.
- The EPDM sponge O-ring creates an effective seal between the top cover and bottom housing, preventing moisture and contaminants from reaching your valuable components.
- Durable ABS Construction: Made from high-quality ABS grey material, this enclosure offers excellent impact resistance rated at IK08.
- The thermoplastic construction keeps its strength and flexibility across extreme temperatures, from -20°C to +70°C, ensuring reliable performance in demanding outdoor conditions.
- Easy fitting & Maintenance: The enclosure comes with nickel-coated M4 x 16 Pan Phillips screws for secure closure and includes wall fixing accessories with nuts for quick mounting.
- The 141.5mm x 141.5mm mounting pattern gives stable fitting on walls, panels, or equipment racks.
- Professional Grey Finish: The top cover features ABS grey while the bottom uses RAL 7035 grey, creating a professional appearance that blends well with industrial equipment.
- The clean finish resists fading and keeps its appearance even after extended outdoor exposure.
- Certified Quality & Compliance: This enclosure meets international standards including UL 94-HB rating for flame resistance, CE marking for European compliance, and RoHS certification for environmental safety.
- UV-resistant properties makes sure the material won’t degrade under direct sunlight exposure.
Technical Specifications
- This square enclosure measures exactly 150mm in width, 150mm in length, and 70mm in depth, providing adequate internal space for small electronic modules, sensors, and control circuits.
- The mounting dimensions are 141.5mm x 141.5mm, allowing for secure attachment to many surfaces.
- The internal cavity offers 58mm of usable width with effective mounting depth.
- The enclosure body is constructed entirely from ABS thermoplastic material in grey color.
- The sealing system uses white EPDM sponge O-ring gasket that keeps its elasticity across the full operating temperature range.
- All hardware includes nickel-coated screws that resist corrosion in outdoor environments.
- Quality certifications include UL 94-HB flame rating, CE conformity marking, and RoHS environmental compliance.
- The unit operates reliably from -20°C to +70°C, covering most industrial temperature requirements.
- UV stabilization prevents material damage from prolonged sun exposure.
Industries and Applications
- Power Distribution: Mount MCBs, fuses, and bus bars in residential or commercial electrical panels.
- Textile Machinery: Protect motor drives and control boards on looms and weaving machines in dusty factory floors.
- Pharmaceutical Plants: Keep electronics safe from cleaning chemicals and steam in medicine production areas.
- Railway Signalling: House track signalling circuits and relays in outdoor weatherproof boxes near railway lines.
- Mining Equipment: Protect sensors and relay panels from dust, vibration, and moisture in quarries and mines.
