140x190x100mm Custom Electrical Enclosure – Details
ABS opaque waterproof enclosure with 140x190mm footprint — the longer 190mm body suits applications where components or terminals are arranged along the length, with cable entries from base or sides. 100mm depth provides adequate wiring clearance for medium electrical assemblies. Widely customised for junction boxes, solar ACDB units, outdoor control panels, and electrical distribution points needing IP67 protection with custom hole arrangements.

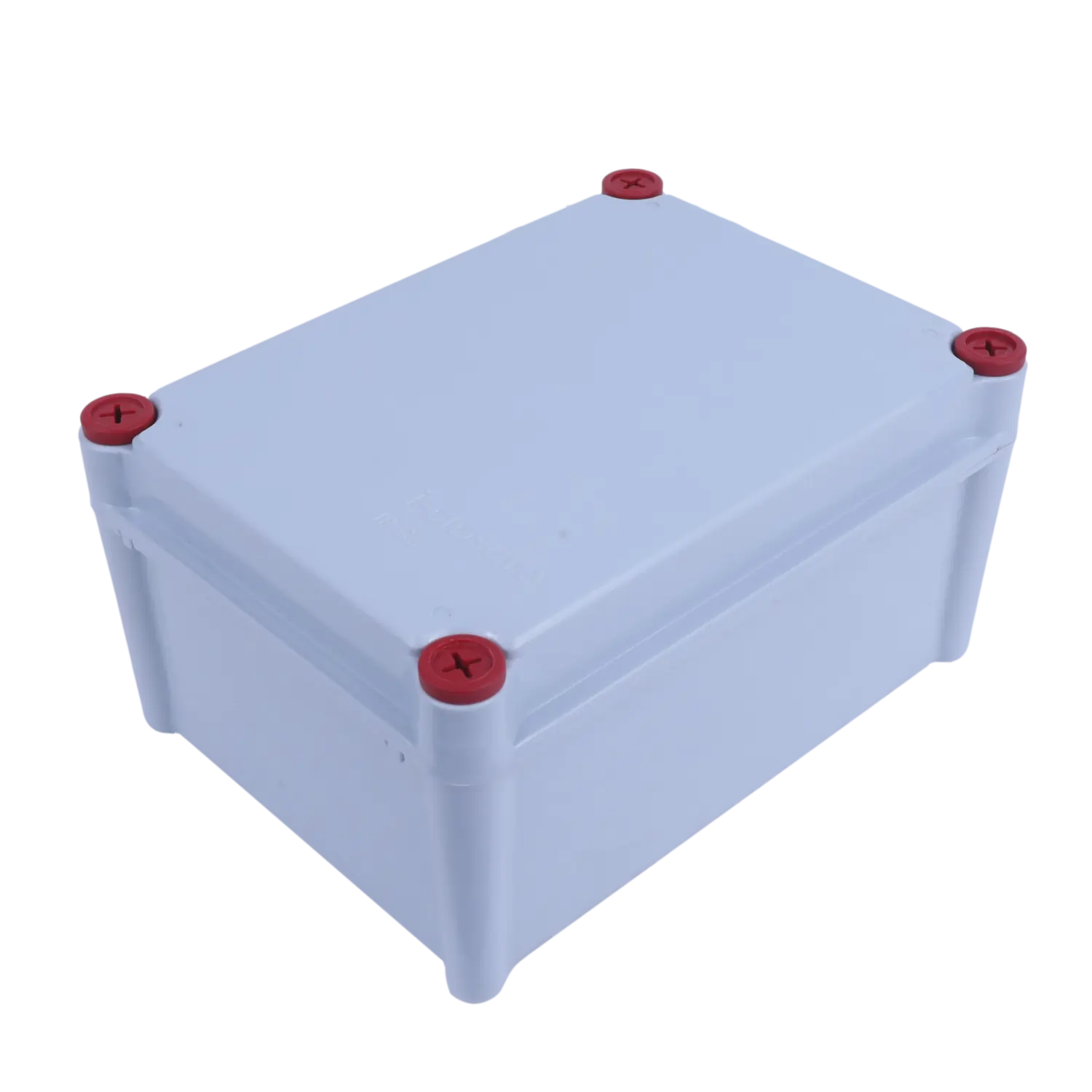

Isometric View
Inside View
Example
Idis India a reputed, cost effective and reliable partner for complete solution of Waterproof Electrical enclosure and their accessories. Mounting plate helps to fix pcbs and other components. Air vents, Cable Glands, Pole clamp and customized holes and cutouts available. Below is the Accessories of 100x100x80mm Electrical Enclosure by Idis India
Cable Gland
Nylon cable glands suitable for IP65 Ratings from reputed manufacturer. Available size are PG9 and PG13.5 as a standard SKU each pack of 100.
Air Vents
Suitable for highly critical enclosures where chances of heat builtup in IP rated enclosures. IP67 rating will be Void.
Din Rail
Major of electrical components are to be mounted on standard 35mm width Din rails. Available standard cut length as per enclosures.
Key Features and Benefits
- Superior Weather Protection: The IP67 water and dust protection rating makes sure complete dust-tight sealing and protection against water dipping up to 1 meter depth.
- Your electrical components stay safe even in heavy rain, flooding, or dusty industrial environments.
- Durable ABS Construction: Made from high-grade ABS grey plastic, this enclosure resists impact damage and chemical exposure.
- The material keeps its structural integrity across temperature extremes, making it perfect for both indoor and outdoor installations.
- Easy fitting Design: Pre-drilled mounting holes and included accessories make fitting quick and easy.
- The enclosure comes with wall fixing screws, DIN rail mounting options, and all necessary hardware for secure mounting on many surfaces.
- Temperature Resilient Performance: Operating reliably from -20°C to +70°C, this enclosure handles extreme weather conditions without warping or cracking.
- The silicon sponge O-ring keeps consistent sealing across the entire temperature range.
- Professional Finish: The RAL 7035 grey color gives a clean, professional appearance that blends well with industrial equipment and building facades.
- Red screws add visibility for maintenance identification while maintaining aesthetic appeal.
Technical Specifications
- This enclosure measures 140mm in width, 190mm in length, and 100mm in depth, providing ample space for circuit boards, terminals, and small electronic modules.
- The mounting footprint needs 128mm × 178mm of surface area for secure fitting.
- The internal depth of 85mm accommodates most standard electrical components with room for proper wire management.
- The enclosure body uses ABS grey material for both top cover and bottom sections.
- Nylon 6 GF 30% screws gives strong closure while resisting corrosion and thread wear.
- The silicon sponge O-ring creates a reliable environmental seal that keeps flexibility over years of service.
- Quality certifications include CE marking for European compliance, RoHS certification for environmental safety, and UL listing for North American electrical standards.
- The enclosure meets IK07 impact resistance standards, protecting against mechanical damage from tools, vandalism, or accidental contact.
Industries and Applications
- Power Distribution: Mount MCBs, fuses, and bus bars in residential or commercial electrical panels.
- Textile Machinery: Protect motor drives and control boards on looms and weaving machines in dusty factory floors.
- Pharmaceutical Plants: Keep electronics safe from cleaning chemicals and steam in medicine production areas.
- Railway Signalling: House track signalling circuits and relays in outdoor weatherproof boxes near railway lines.
- Mining Equipment: Protect sensors and relay panels from dust, vibration, and moisture in quarries and mines.
